Performance of Variable Vane Hydraulic Pumps: Understanding Efficiency and Reliability

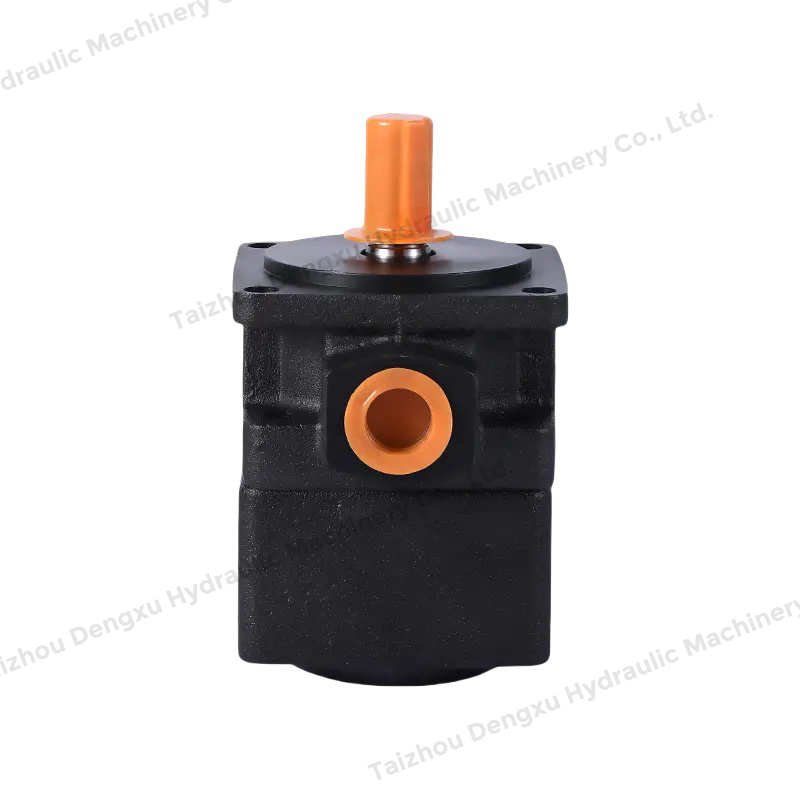

High Pressure Vane Hydraulic Pump Manufacturer Factory

Hydraulic systems are integral to various industries, from manufacturing and construction to aerospace and automotive applications. Among the many components that drive these systems, hydraulic pumps play a critical role in converting mechanical energy into fluid energy to perform work. One of the important types of hydraulic pumps is the variable vane hydraulic pump. Known for their adaptability and precision, variable vane pumps offer several advantages over fixed displacement pumps in applications where variable flow is necessary.

A hydraulic pump is responsible for pressurizing hydraulic fluid and supplying it to the hydraulic system. Hydraulic pumps are typically classified into two categories: fixed displacement and variable displacement. A fixed displacement pump provides a constant flow rate of hydraulic fluid, regardless of system pressure, while a variable displacement pump can adjust the flow rate based on the demand of the hydraulic system.

The variable vane hydraulic pump is a type of variable displacement pump that uses a set of vanes mounted on a rotor inside a housing. The key feature of a variable vane pump is that the position of these vanes can be adjusted, which changes the volume of fluid displaced with each rotation of the pump. This allows the pump to adjust its flow rate based on system requirements.

Variable vane pumps are particularly useful in systems where flow needs to be controlled dynamically, such as in applications that require a variable speed or pressure. They are commonly used in mobile machinery, industrial equipment, and automotive applications.

The operation of a variable vane hydraulic pump is based on the principle of varying the displacement of fluid by changing the angle of the vanes in the pump. The rotor inside the pump has slots that hold the vanes, which are pushed outward by centrifugal force as the rotor spins. The vanes slide within these slots and form chambers that trap the hydraulic fluid. The volume of these chambers determines how much fluid is displaced during each rotation.

In a variable vane pump, the angle of the vanes can be adjusted using a control mechanism. By increasing the angle of the vanes, the displacement volume increases, bring about a higher flow rate. Conversely, by decreasing the angle of the vanes, the displacement volume is reduced, resulting in a lower flow rate. This ability to adjust displacement provides the pump with flexibility to meet varying system demands for fluid flow.

The performance of variable vane hydraulic pumps depends on several factors, including efficiency, pressure stability, flow rate adjustment, and overall durability. Understanding these characteristics is crucial for selecting the right pump for a given application.

One of the important performance factors for any hydraulic pump is efficiency, which is defined as the ratio of useful energy delivered by the pump to the energy input into the system. Variable vane pumps are generally known for their high efficiency, particularly in applications where the flow rate can be adjusted according to the demands of the system.

The efficiency of a variable vane pump depends on several factors, including the design of the pump, the quality of its components, and the control mechanism used to adjust the vane angle. Because the pump adjusts its displacement based on the load, it operates more efficiently than fixed displacement pumps in applications with varying demand. The ability to adjust the flow ensures that the pump is not working harder than necessary, reducing energy consumption and extending the lifespan of the pump.

However, it's important to note that, like any hydraulic pump, a variable vane pump's efficiency can be influenced by factors such as internal leakage, which can reduce overall performance. Proper maintenance and monitoring of the pump's internal components are essential to maintaining high efficiency.
