Understanding the Production of Variable Vane Hydraulic Pumps

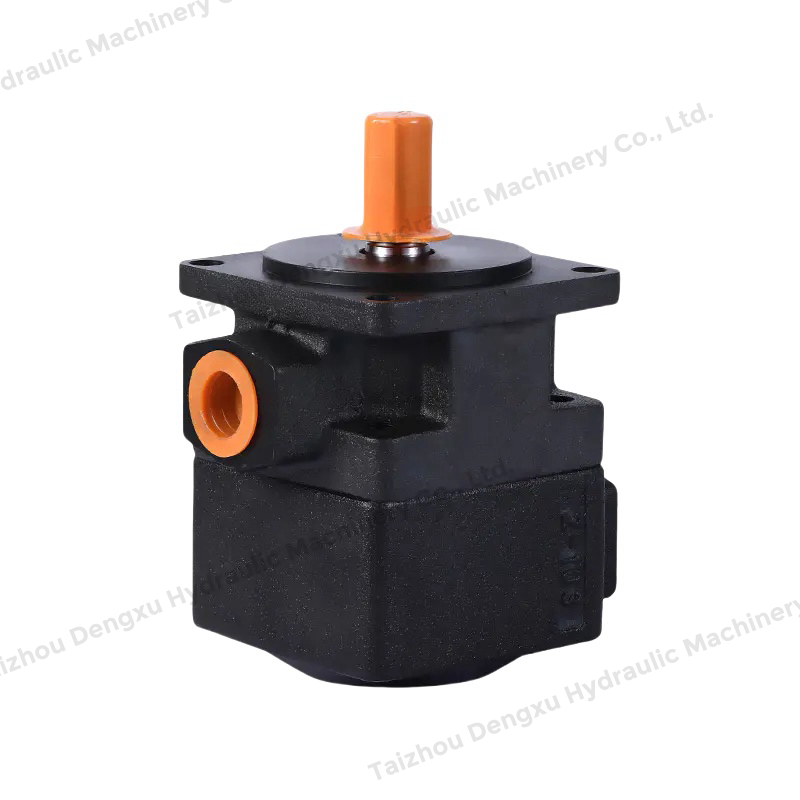

Sale Double Hydraulic Power Vane Pump Manufacturer Supplier

Hydraulic systems are fundamental in many industries, from construction and manufacturing to aerospace and automotive. The performance of these systems heavily relies on hydraulic pumps, which provide the necessary fluid power to operate machinery and equipment. Among the various types of hydraulic pumps, the variable vane hydraulic pump stands out due to its adaptability and efficiency.

A variable vane hydraulic pump is a type of positive displacement pump that uses rotating vanes to create pressure and flow within a hydraulic system. What sets it apart from other hydraulic pumps is its ability to adjust the displacement of the pump—essentially, the volume of fluid it moves—according to the system's demands. This adjustment is achieved by varying the position of the vanes relative to the pump's rotor, which can increase or decrease the flow output.

This variable displacement feature makes the pump highly efficient, as it can operate at varying loads and speeds without wasting energy. By regulating the displacement based on the system's requirements, the variable vane hydraulic pump helps optimize energy usage, reduce wear, and provide smoother operation.

Before diving into the production process, it's important to understand the key components of a variable vane hydraulic pump. The pump consists of several critical parts, including:

Rotor: The rotor is a central component of the pump and is responsible for rotating and driving the vanes.

Vanes: These are spring-loaded blades that move in and out of slots within the rotor, creating the pumping action by trapping hydraulic fluid.

Cam Ring: The cam ring guides the vanes and controls their displacement. By altering the cam profile, the pump can vary the fluid displacement.

Housing: The housing contains the rotor, vanes, and other internal components, providing structural support and sealing the pump's internal elements.

Shaft: The shaft connects the pump to the engine or motor, transmitting mechanical power to the rotor.

Together, these components work in tandem to create the controlled movement of fluid, making the pump effective in dynamic hydraulic systems.

The production of a variable vane hydraulic pump involves several stages, from material selection and machining to assembly and testing. Each step must be carried out with precision to ensure the pump's performance, durability, and efficiency.

The production of hydraulic pumps requires high-strength materials capable of withstanding the intense pressures and temperatures generated within hydraulic systems. Typically, materials such as steel, cast iron, or high-performance alloys are used for the rotor, housing, and other structural components.

Once the materials are selected, they are prepared for machining. This may involve processes like casting, forging, or milling, depending on the complexity of the part and the required specifications.

Machining is a critical phase in the production of variable vane hydraulic pumps, as the precision of each part directly impacts the pump's performance. Components like the rotor, cam ring, and housing undergo various machining processes, including:

CNC Machining: Computer Numerical Control (CNC) machines are used to achieve high precision in machining the pump components. These machines are programmed to create complex shapes and profiles, such as the slots for the vanes and the cam ring's profile.

Grinding and Polishing: After machining, components such as the rotor and cam ring are often ground and polished to ensure smooth surfaces that reduce friction and wear during operation.

Drilling and Boring: Holes for the pump's inlet and outlet ports are drilled to precise dimensions, ensuring proper fluid flow and connection to the hydraulic system.
