Variable vane hydraulic pumps are crucial components in hydraulic systems that power machinery and equipment in a wide range of industries. Known for their ability to adjust fluid flow based on system demands, these pumps offer a level of flexibility and efficiency that makes them ideal for applications requiring variable displacement. Understanding the appearance and characteristics of these pumps helps to highlight their importance and the factors that contribute to their performance.

Unlike fixed displacement pumps, which deliver a constant flow, a variable vane pump adjusts its displacement depending on the demand for hydraulic fluid. This adjustment is typically made by altering the position of the vanes or by adjusting the angle of the cam ring. This adaptability makes the pump energy-efficient, as it only delivers the amount of fluid required, rather than working at full capacity all the time.

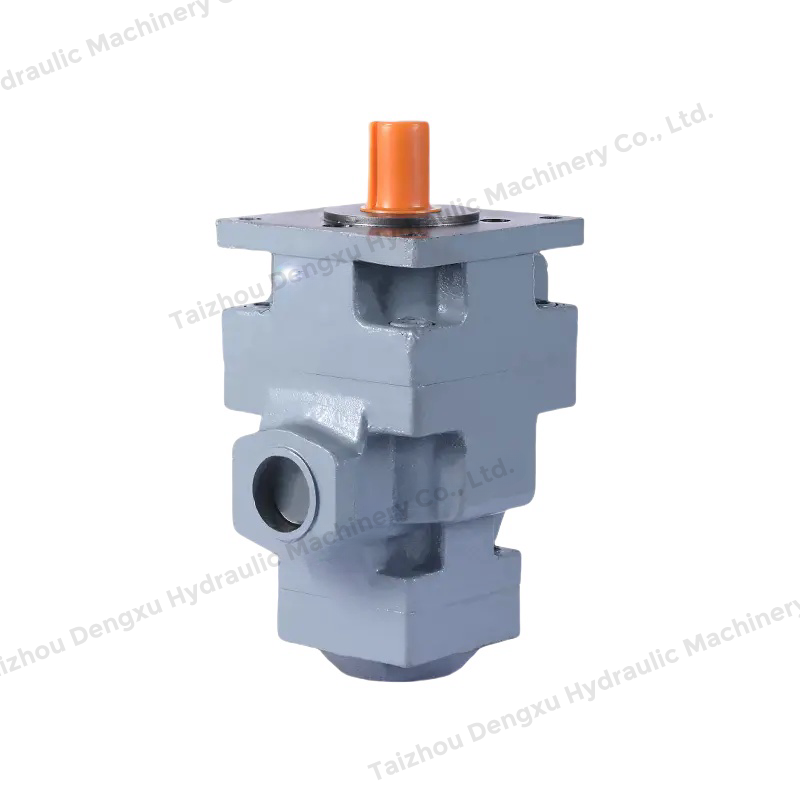

At glance, a variable vane hydraulic pump may appear relatively simple, but its design is anything but basic. The pump is typically housed in a durable metal casing, often made from materials such as cast iron, steel, or aluminum. These materials provide the necessary strength to withstand the pressures and forces generated within the hydraulic system.

Key visual characteristics include:

Compact and Cylindrical Shape: The pump is usually compact, with a cylindrical or barrel-like shape. This housing encloses the internal components, such as the rotor, cam ring, vanes, and shaft. The compact design allows the pump to be integrated into a variety of machinery and equipment without taking up excessive space.

Multiple Ports: The pump features several ports, including an inlet port for fluid entry and an outlet port for fluid discharge. These ports are essential for connecting the pump to the rest of the hydraulic system. Depending on the design, there may also be additional ports for relief valves, pressure sensors, and other control mechanisms.

Rotating Shaft: A rotating shaft extends from the center of the pump, which is connected to the motor or engine. This shaft transmits the mechanical energy necessary for the pump to function, driving the rotor's rotation and the movement of the vanes.

Visible Slots for Vanes: The rotor housing is designed with slots where the vanes slide in and out. Depending on the angle of the cam ring and the hydraulic demand, these vanes either extend outward or retract inward, varying the pump's displacement. The movement of the vanes is typically visible through transparent sections of the pump housing or openings on the side.

While the appearance may vary slightly depending on the manufacturer and specific design, variable vane pumps share these basic characteristics.

Beyond their appearance, the characteristics of variable vane hydraulic pumps are what make them a critical component in hydraulic systems. These features are a result of thoughtful design, with an emphasis on efficiency, flexibility, and reliability.

One of the standout features of a variable vane hydraulic pump is its ability to vary displacement in response to system demands. Displacement refers to the volume of hydraulic fluid the pump moves per rotation of the rotor. In variable vane pumps, the displacement is controlled by the position of the vanes.

Adjustable Cam Ring: The cam ring inside the pump is responsible for adjusting the vane's angle, thus altering the displacement. By moving the cam ring, the pump adjusts the volume of fluid displaced per rotation, either increasing or decreasing the flow of fluid to meet the needs of the hydraulic system.

Energy Efficiency: This ability to vary displacement is a key factor in the pump's energy efficiency. In situations where full flow isn’t required, the pump can reduce its output, saving energy and reducing wear and tear on the system.
