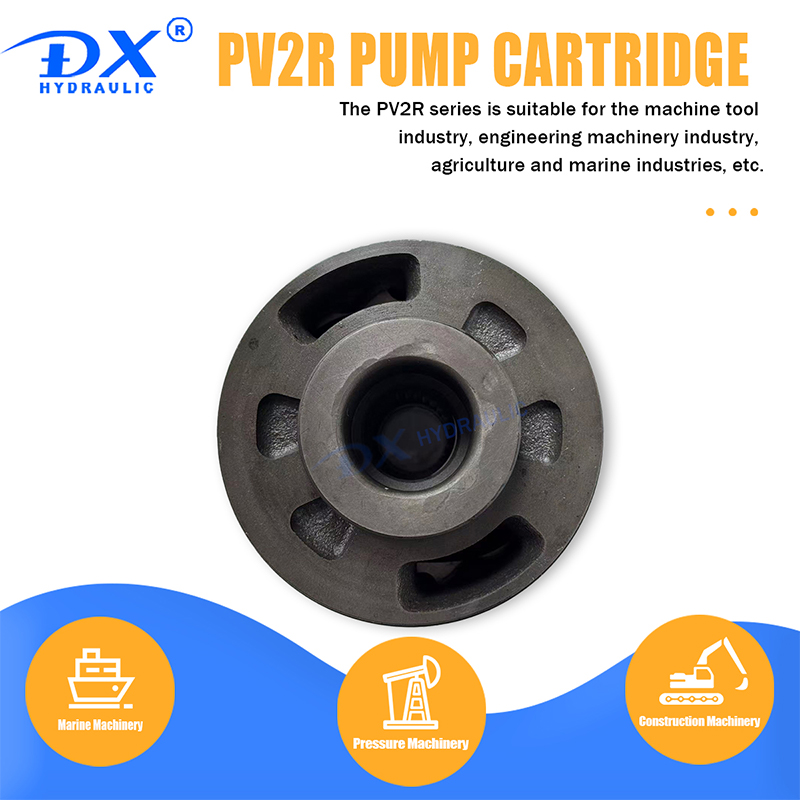

PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment
PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment

PV2R High Precision Low Noise High Pressure Vane Pump Cartridge Kits For Industrial Equipment

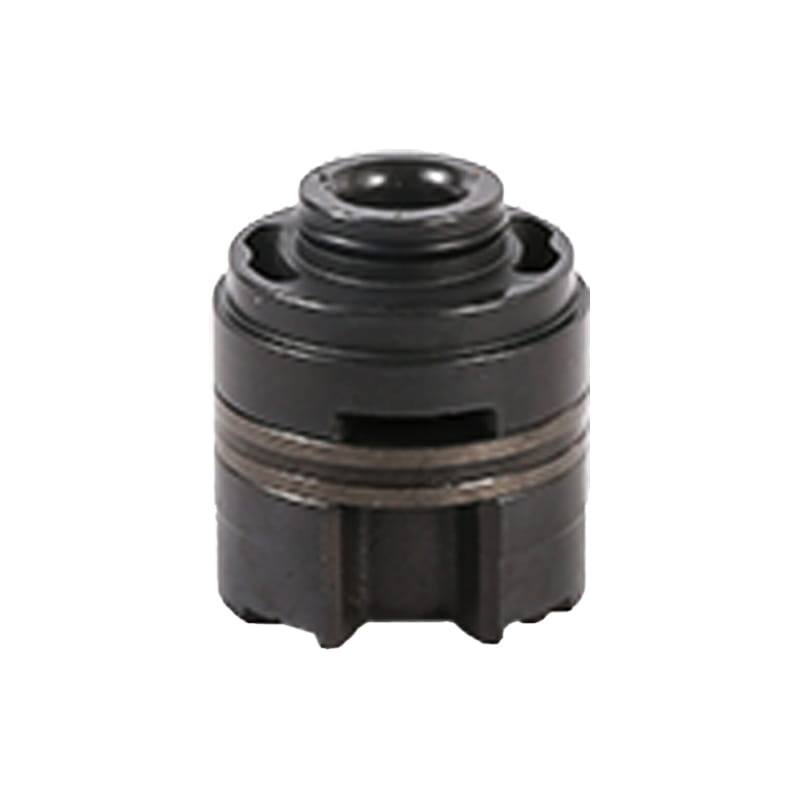

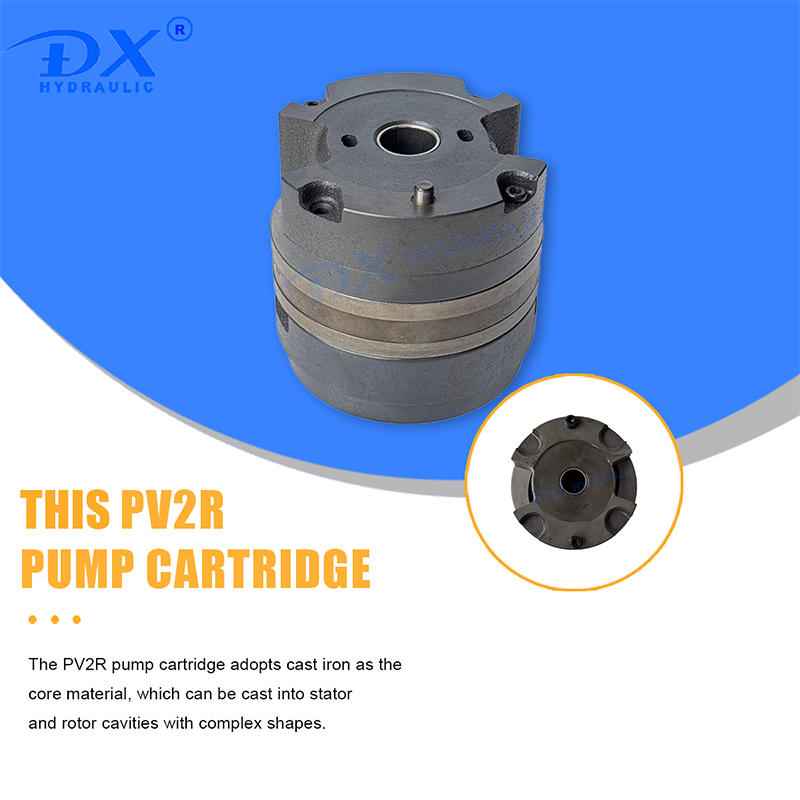

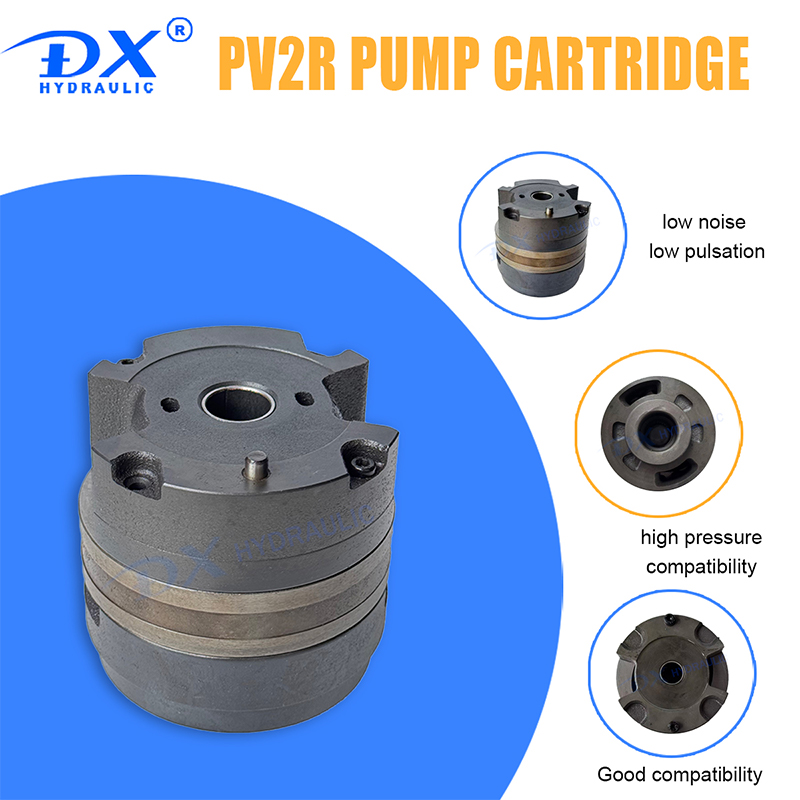

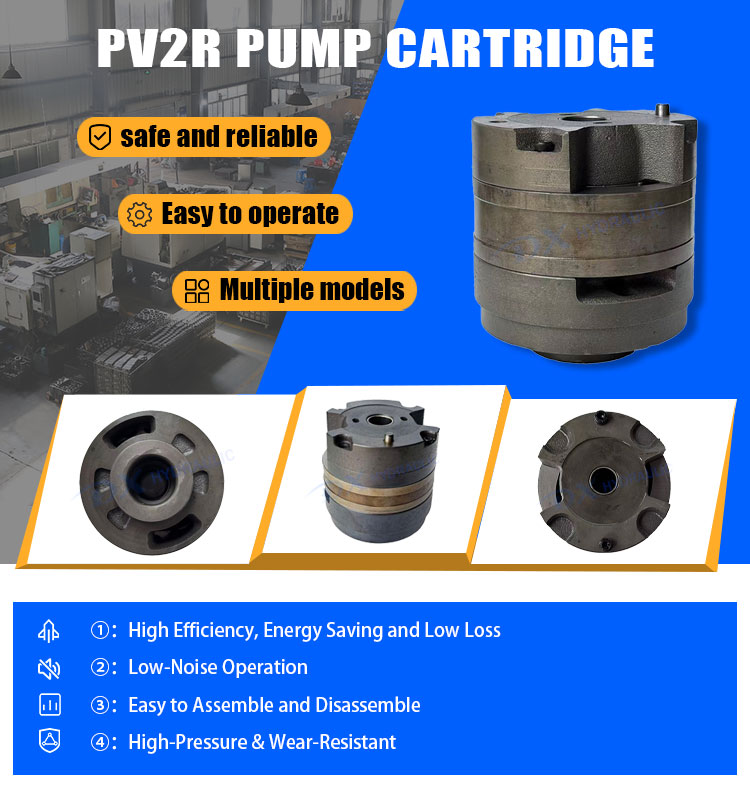

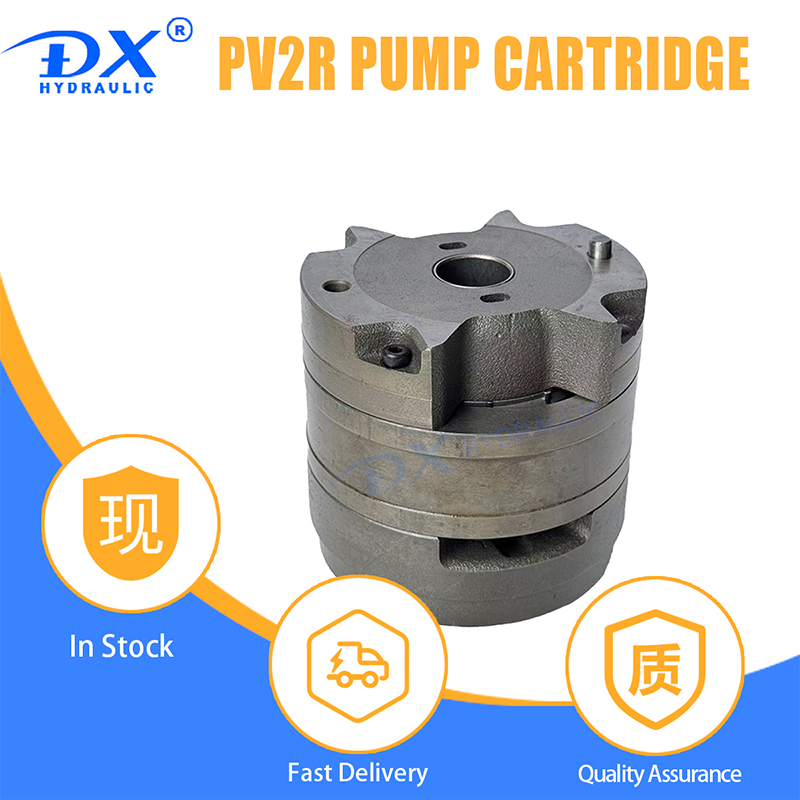

PV2R high-precision and low-noise high-pressure vane pump core for industrial equipment is a key component with performance in the hydraulic system. Its outstanding advantages are reflected in many aspects, making it the first choice in many industrial applications.
High-precision design: The PV2R pump core adopts an advanced high-precision design to ensure a stable output of precise flow during the working process. This feature makes the PV2R pump core perform in industrial scenarios that require precise fluid control, such as CNC machine tools, injection molding machines, and other equipment that require highly precise control.
Low-noise operation: The PV2R pump core generates extremely low noise during operation through optimized design and selection of high-quality materials. This is particularly important in noise-sensitive industrial environments, such as near office areas or in equipment that requires high operator comfort. PV2R pump elements can maintain quiet and efficient operation.
Suitable for industrial equipment: The PV2R pump core is specially designed for industrial equipment and can operate stably in high-pressure hydraulic systems. Its durable design and reliable performance make it an ideal choice for hydraulic systems and is widely used in various types of heavy industrial equipment such as metallurgical equipment, injection molding machinery, and agricultural machinery.

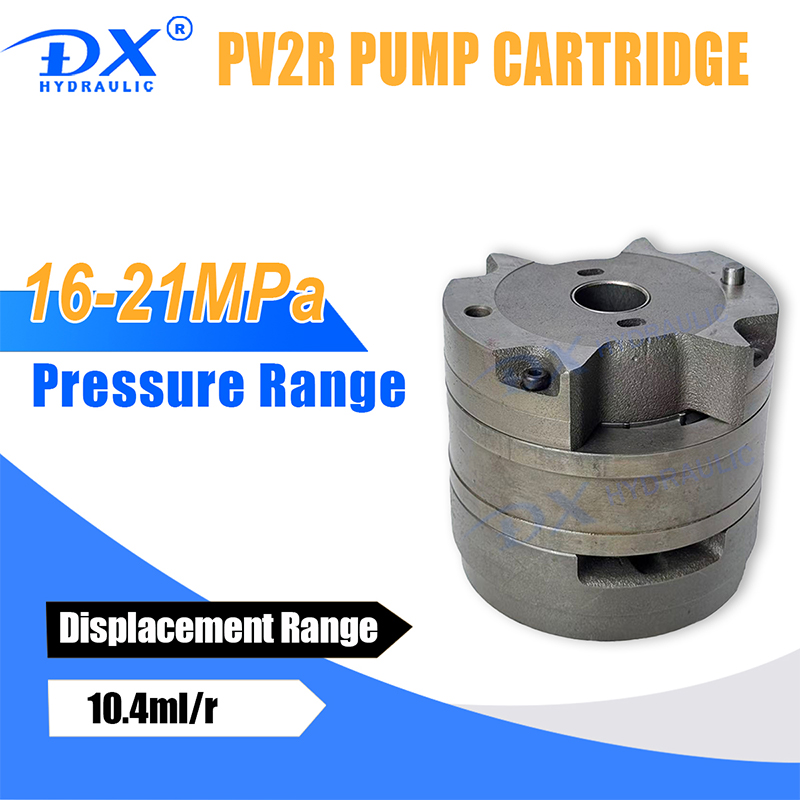

High-pressure performance: The PV2R pump core has high-pressure performance and can work stably in systems requiring high hydraulic pressure. This allows the PV2R pump core to play an important role in some industrial applications that require greater power output, such as hydraulic punch machines, hydraulic pressure testing equipment, etc.
Reliability and durability: The PV2R pump core adopts high-quality materials and a strict manufacturing process, which has reliability and durability. This ensures that the pump core is not susceptible to damage during long-term operation, reduces maintenance and replacement costs, and provides reliable hydraulic power support for industrial equipment.
Wide range of applications: The high performance and multi-functional design of the PV2R pump element enable it to be used in many industrial fields. From metal processing, and plastic molding to agricultural machinery and other fields, PV2R pump cores play a key role in providing efficient and stable hydraulic support for industrial equipment.
PV2R high-precision, low-noise high-pressure vane pump core for industrial equipment has become an important part of the hydraulic system due to its series of outstanding features such as high-precision design, low-noise operation, suitability for industrial equipment, high-pressure performance, reliability and durability. The components meet the industrial field's demand for high-performance and high-efficiency hydraulic equipment.
Get A Quote
PREV：PV2R1 Single Vane pumpNEXT：PV2R31 Double Pump Hydraulic Power Vane Pump With Low Noise And High Pressure
  • Technical Parameters
  • Dimensional Drawing

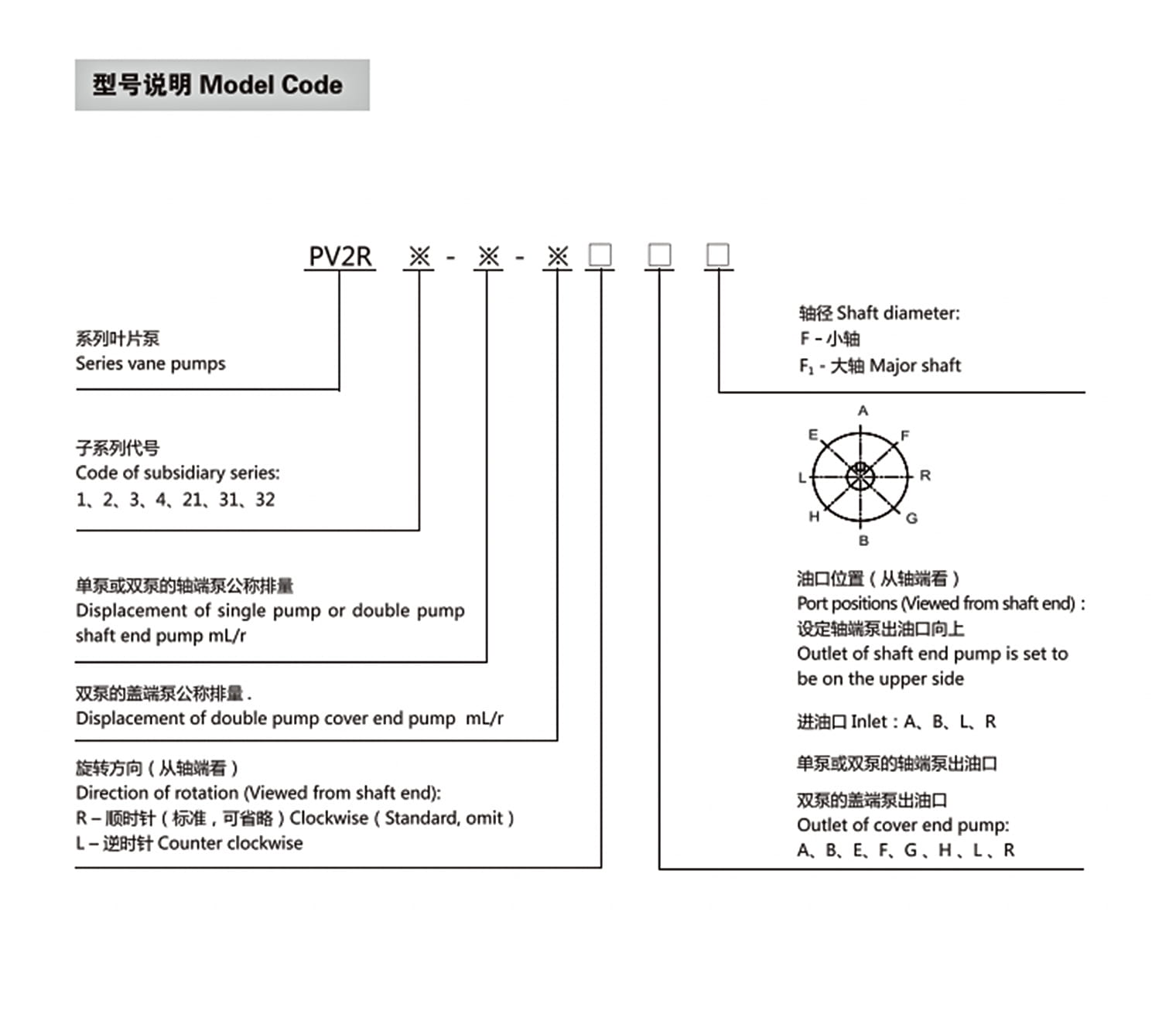

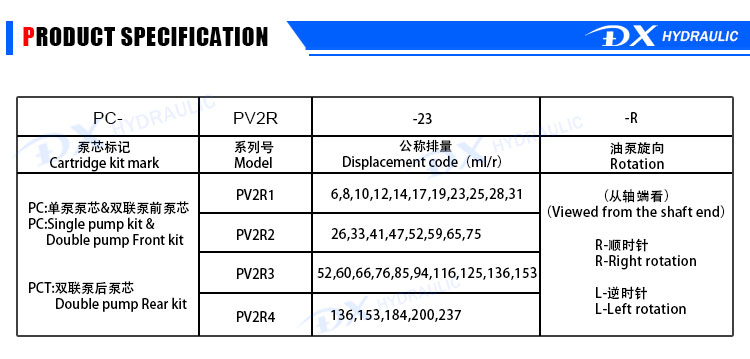

  • Model Description
  • Precautions
  • Contact Us
  • Install and use
    1. During installation, the coaxiality error between the pump shaft and the drive motor shaft should be ≤0.10mm, and a flexible coupling should be used. The support structure should be firm, rigid, and able to fully absorb vibration. The pump shaft should be installed horizontally.
    2. Match the pipelines according to the size of the oil port, especially the oil inlet pipe, and install a safety relief valve in the system; the oil inlet pipeline must be strictly sealed to prevent air leakage, and the oil return pipe opening should be lower than the liquid level.
    3. Before starting the pump, check whether the inlet and outlet routes and the direction of rotation are correct. When the pump is newly installed or restarted after being stopped for a long time, the air should be released from the oil outlet. When starting, run at low pressure (1.5MPa).
    4. When the pump is installed higher than the oil level of the tank, the oil suction height is ≤500mm. It is best to keep the oil suction port lower than the oil level in the fuel tank. The positive pressure at the suction port should be ≤0.03MPa.
    5. Keep the oil clean, and the pipes and fuel tank must be thoroughly cleaned. Install a filter with sufficient capacity at a position above 50mm from the pump suction inlet to the bottom of the tank. The recommended accuracy is 100μm. A fine filter should be installed in the system, it is recommended to be 25μm and the oil cleanliness level should be within NAS12.
    6. The operating temperature of the oil should be controlled within the range of 15~55°C. When starting in severe cold and low temperatures, the oil should be heated, and the oil pump should be inched several times without load before running continuously without load.
    7. Pay attention to the viscosity and quality of the oil. It is recommended to use 32 anti-wear hydraulic oil when the ambient temperature is low.
    8. If you need to change the direction of the oil port, first remove the relevant pump body screws, be careful not to separate the left and right pump bodies, ensure that the heart piece rotates at a certain angle with the oil inlet, and then gradually tighten diagonally.
    9. After the entire pump is installed, rotate the pump shaft by hand. It should be even and flexible.
