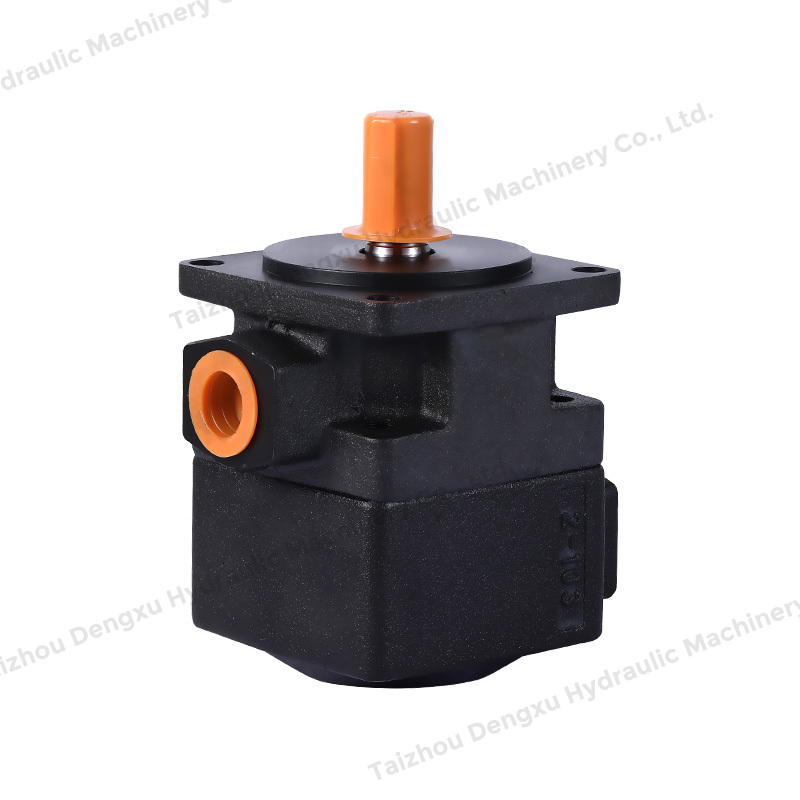

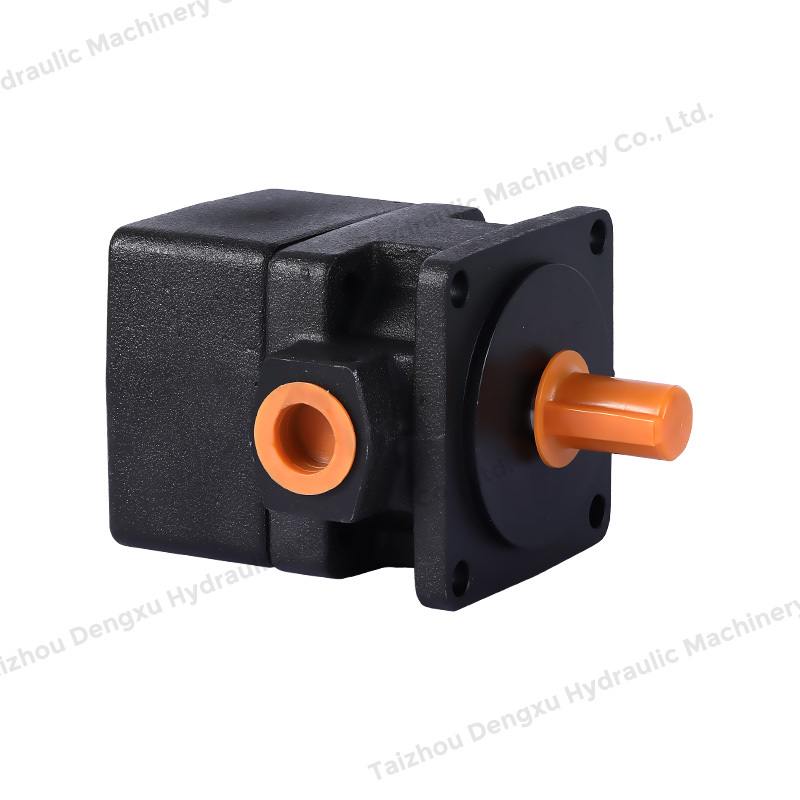

YB3 Series High Efficiency Hydraulic Vane Pump With Medium And Low Pressure
YB3 Series High Efficiency Hydraulic Vane Pump With Medium And Low Pressure
YB3 Series High Efficiency Hydraulic Vane Pump With Medium And Low Pressure
YB3 Series High Efficiency Hydraulic Vane Pump With Medium And Low Pressure
YB3 Series High Efficiency Hydraulic Vane Pump With Medium And Low Pressure
YB3 Series High Efficiency Hydraulic Vane Pump With Medium And Low Pressure

YB3 Series High Efficiency Hydraulic Vane Pump With Medium And Low Pressure

The YB3 series hydraulic vane pump is a hydraulic solution with innovative design and high performance. Its structure has been carefully designed to provide performance in medium and low pressure hydraulic systems. This pump focuses on providing reliable and efficient hydraulic power to ensure stable system operation.
The YB3 series hydraulic vane pump has a displacement range of 31.5-50mL/r, providing multiple displacement options to suit different medium and low-pressure applications. It has strong adaptability and is suitable for various industrial fields, such as light construction machinery, agricultural equipment, etc. Whether for medium-sized machinery or small construction machinery, YB3 can meet different hydraulic needs.
The overall weight of the YB3 pump is 16kg, and its strong and durable design ensures reliable operation of the pump under various working conditions. High-quality materials and rigorous manufacturing processes provide the pump with exceptional durability, reducing maintenance frequency and equipment downtime.
This hydraulic vane pump has performance in medium and low-pressure hydraulic systems and is widely used in different scenarios. It can be used in the transmission system of light construction machinery to provide powerful hydraulic output. At the same time, YB3 is also suitable for agricultural machinery, providing efficient hydraulic support for tractors and agricultural equipment.
The design of the YB3 hydraulic vane pump focuses on efficient and low-noise operation. Advanced manufacturing processes and designs allow the pump to operate with low noise levels, which is very important for some applications with strict noise requirements, such as machinery and equipment around urban environments or office areas.
YB3 series pumps achieve precise flow control to ensure precise hydraulic output in medium and low-pressure systems. This helps improve the overall efficiency of the hydraulic system while providing more precise hydraulic control.
The YB3 hydraulic vane pump is designed to be simple and easy to install and maintain. This reduces equipment maintenance costs, reduces downtime, and increases equipment availability and productivity.
YB3 31.5-50mL/r 16kg medium and low-pressure hydraulic vane pump provide medium and low-pressure hydraulic systems with many advantages such as innovative design, high adaptability, durability, multi-purpose applications, high efficiency and low noise, precise flow control, and easy installation and maintenance. Offering performance and reliability, it is the ideal hydraulic solution in different industrial fields.
Get A Quote
PREV：YB4 Series Multipurpose Hydraulic Vane Pump With Medium And Low PressureNEXT：YB2 Series Compact Hydraulic Vane Pump With Medium And Low Pressure
  • Technical Parameters

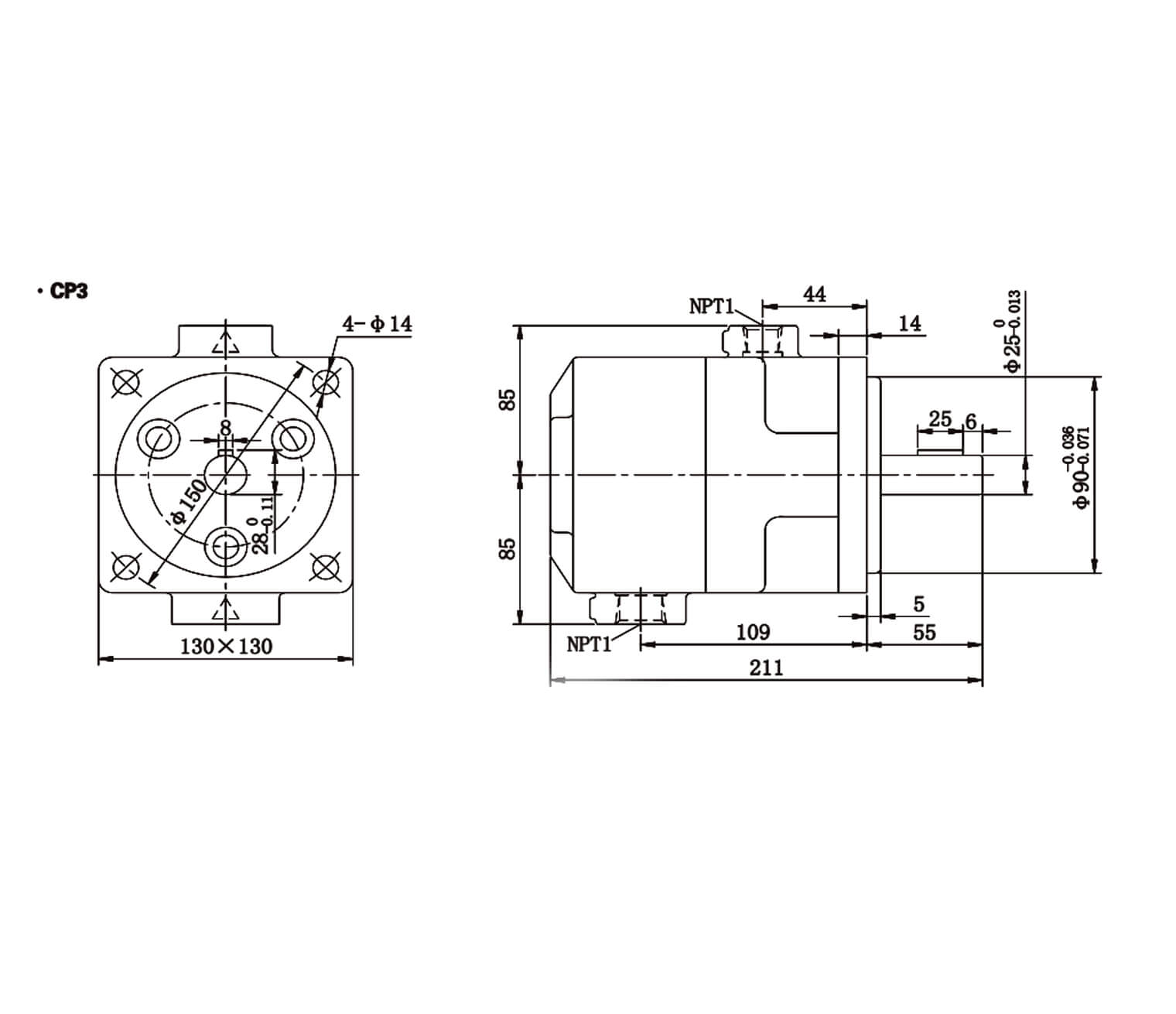

  • Dimensional Drawing
  • Model Description
  • Precautions
  • Contact Us
    • Single Pump
     Subsidiary series Model  Displacement
    mL/r    		 Rated pressure
    MPa    		 Speed
    r/min    		 Input power
    kW
         		 Weight
    kg
    CP3 YB1-31.5 31.5 6.3 960 4.2 16
    YB1-40 40 5.2
    YB1-50 50 6.5
  • Install and use
    1. During installation, the coaxiality error between the pump shaft and the drive motor shaft should be ≤0.10mm and a flexible coupling should be used. The support structure should be firm, rigid, and able to fully absorb vibration. The pump shaft should be installed horizontally.
    2. Match the pipelines according to the size of the oil port, especially the oil inlet pipe, and install a safety relief valve in the system; the oil inlet pipeline must be strictly sealed to prevent air leakage, and the oil return pipe opening should be lower than the liquid level.
    3. Before starting the pump, check whether the inlet and outlet routes and the direction of rotation are correct. When the pump is newly installed or restarted after being stopped for a long time, the air should be released from the oil outlet. When starting, run at low pressure (1.5MPa).
    4. When the pump is installed higher than the oil level of the tank, the oil suction height is ≤500mm. It is best to keep the oil suction port lower than the oil level in the fuel tank. The positive pressure at the suction port should be ≤0.03MPa.
    5. Keep the oil clean, and the pipes and fuel tank must be thoroughly cleaned. Install a filter with sufficient capacity at a position above 50mm from the pump suction inlet to the bottom of the tank. The recommended accuracy is 100μm. A fine filter should be installed in the system, it is recommended to be 25μm and the oil cleanliness level should be within NAS12.
    6. The operating temperature of the oil should be controlled within the range of 15~55°C. When starting in severe cold and low temperatures, the oil should be heated, and the oil pump should be inched several times without load before running continuously without load.
    7. Pay attention to the viscosity and quality of the oil. It is recommended to use 32 anti-wear hydraulic oil when the ambient temperature is low.
    8. If you need to change the direction of the oil port, first remove the relevant pump body screws, be careful not to separate the left and right pump bodies, ensure that the heart piece rotates at a certain angle with the oil inlet, and then gradually tighten diagonally.
    9. After the entire pump is installed, rotate the pump shaft by hand. It should be even and flexible.
