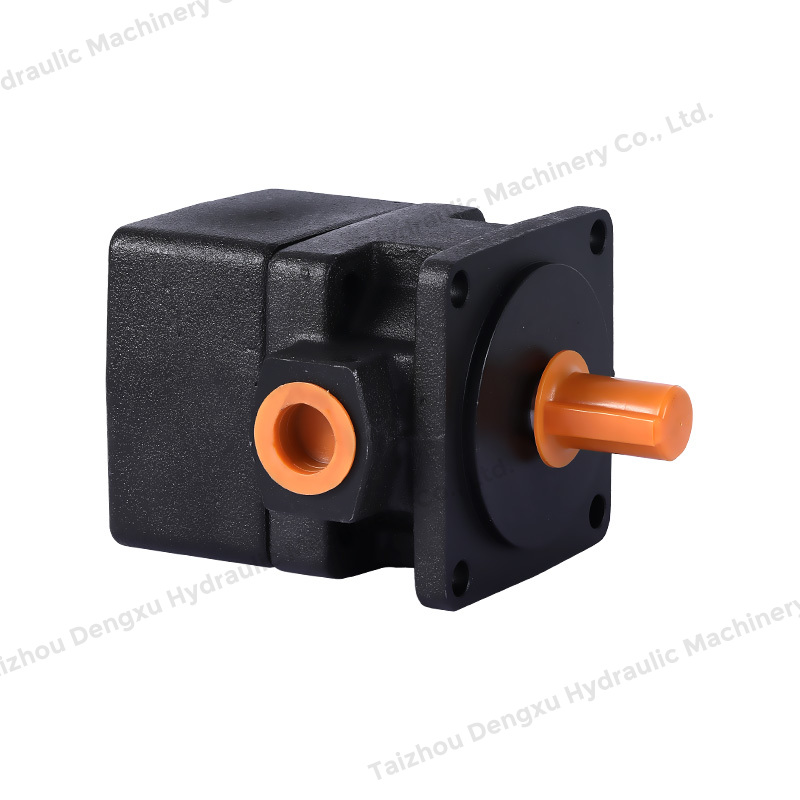

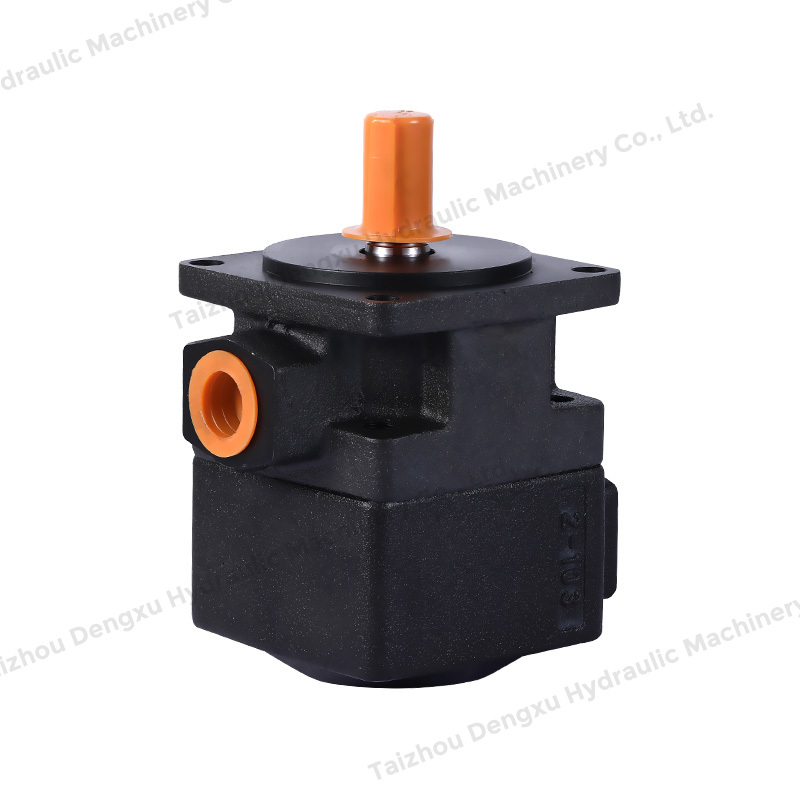

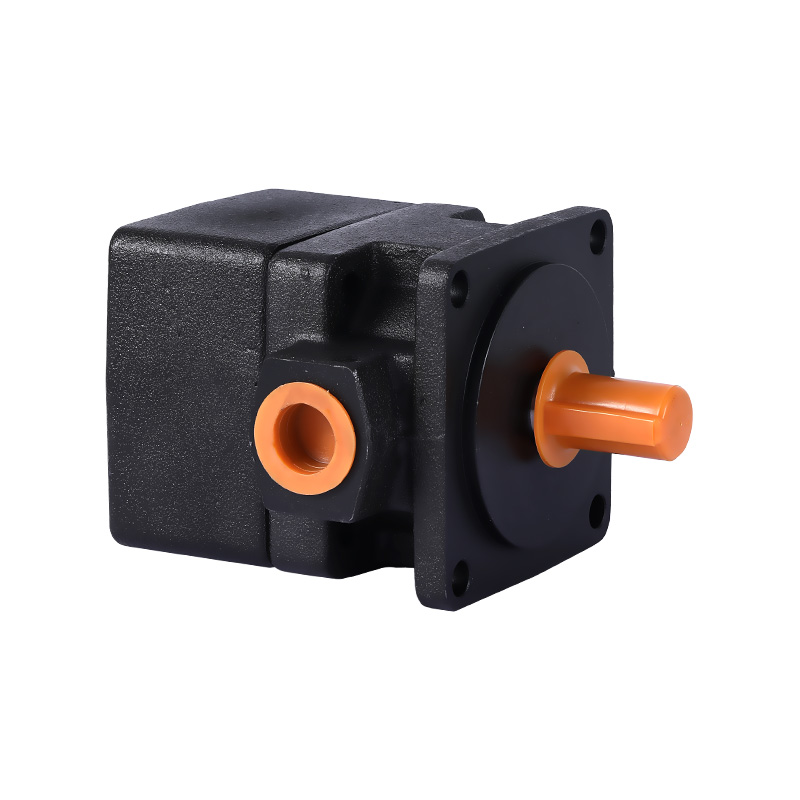

YB2 Series Compact Hydraulic Vane Pump With Medium And Low Pressure
YB2 Series Compact Hydraulic Vane Pump With Medium And Low Pressure
YB2 Series Compact Hydraulic Vane Pump With Medium And Low Pressure
YB2 Series Compact Hydraulic Vane Pump With Medium And Low Pressure
YB2 Series Compact Hydraulic Vane Pump With Medium And Low Pressure
YB2 Series Compact Hydraulic Vane Pump With Medium And Low Pressure

YB2 Series Compact Hydraulic Vane Pump With Medium And Low Pressure

The main advantage of our YB2 12.5-25mL/r 8.7kg medium and low-pressure hydraulic vane pump product is its medium and low-pressure capability. The design team focuses on meeting the needs of low and medium-pressure hydraulic systems and ensuring pump performance and reliability. Whether in industrial manufacturing, logistics equipment, or agricultural applications, the pump can operate stably and provide the required medium and low-pressure hydraulic power.
The pump has a lightweight weight (8.7kg), making it easy to handle and install. This makes the pump suitable for a variety of equipment and applications, including mobile equipment and small industrial equipment. The pump's lightweight design provides easy installation and operation whether indoors or outdoors.
Another important selling point of this hydraulic vane pump is its reliability and durability. The design team used high-quality materials to ensure the pump has a long life and high reliability. It can withstand various harsh environments and working conditions while providing stable performance and continuous working time.
In terms of application, YB2 hydraulic vane pumps are widely used in various medium and low-pressure hydraulic systems. It can be used in automated production lines, injection molding machinery, hydraulic clamping devices, material handling equipment, etc. Whether in industrial manufacturing, agriculture, or logistics, this pump can provide reliable hydraulic power to meet the needs of various fields.
The YB2 12.5-25mL/r 8.7kg medium and low-pressure hydraulic vane pump is the ideal choice through its medium and low-pressure capabilities, lightweight design, reliability, and wide range of applications. Whether in factories, warehouses, or farm fields, the pump provides stable hydraulic power to a variety of equipment, increasing productivity and ensuring smooth work.
Get A Quote
PREV：YB3 Series High Efficiency Hydraulic Vane Pump With Medium And Low PressureNEXT：YB1 Series Lightweight Hydraulic Vane Pump With Medium And Low Pressure
  • Technical Parameters

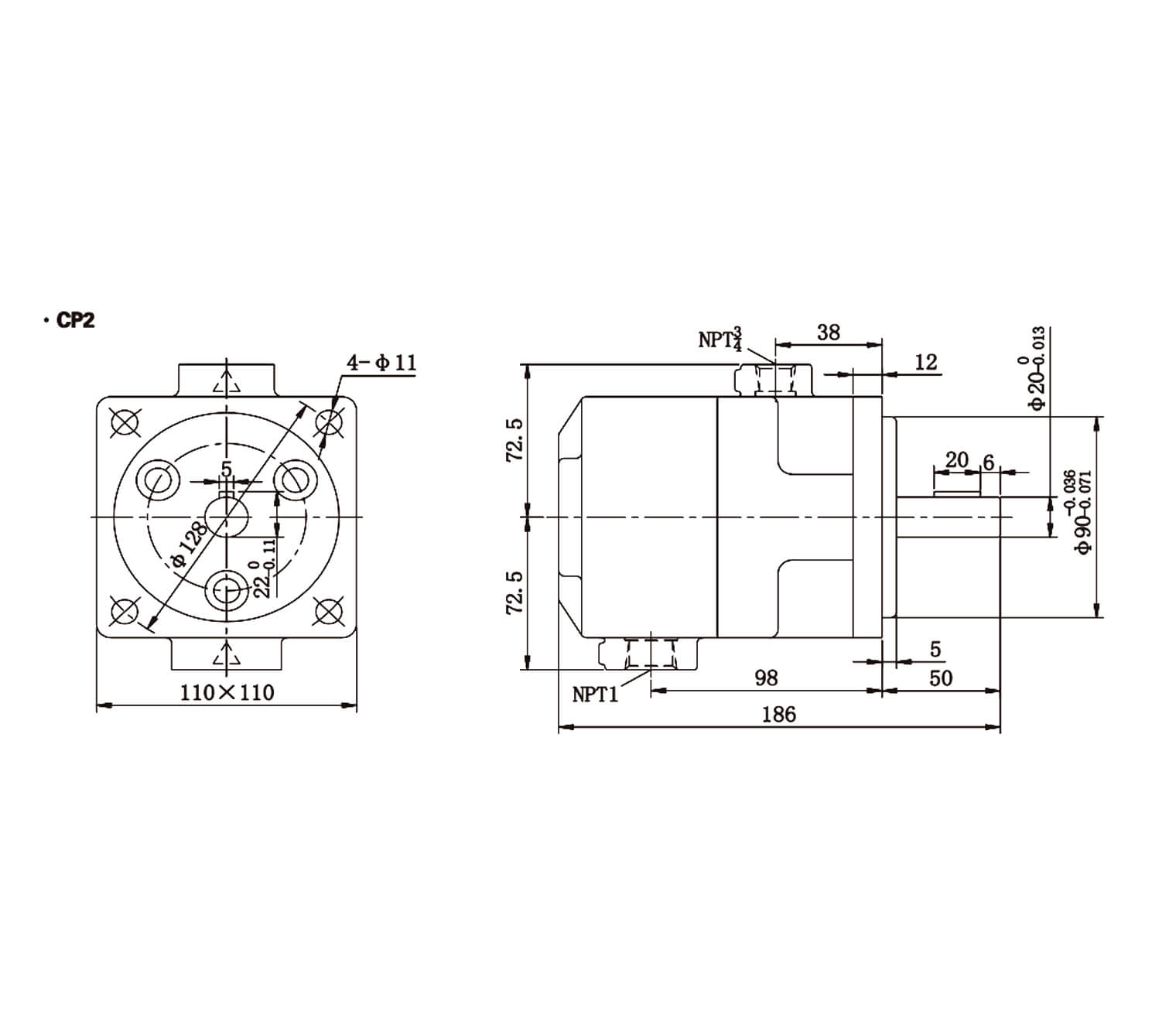

  • Dimensional Drawing
  • Model Description
  • Precautions
  • Contact Us
    • Single Pump
     Subsidiary series Model  Displacement
    mL/r    		 Rated pressure
    MPa    		 Speed
    r/min    		 Input power
    kW
         		 Weight
    kg
    CP2 YB1-12.5 12.5 6.3 960 1.6 8.7
    YB1-16 16 2.0
    YB1-20 20 2.6
    YB1-25 25 3.3
  • Install and use
    1. During installation, the coaxiality error between the pump shaft and the drive motor shaft should be ≤0.10mm and a flexible coupling should be used. The support structure should be firm, rigid, and able to fully absorb vibration. The pump shaft should be installed horizontally.
    2. Match the pipelines according to the size of the oil port, especially the oil inlet pipe, and install a safety relief valve in the system; the oil inlet pipeline must be strictly sealed to prevent air leakage, and the oil return pipe opening should be lower than the liquid level.
    3. Before starting the pump, check whether the inlet and outlet routes and the direction of rotation are correct. When the pump is newly installed or restarted after being stopped for a long time, the air should be released from the oil outlet. When starting, run at low pressure (1.5MPa).
    4. When the pump is installed higher than the oil level of the tank, the oil suction height is ≤500mm. It is best to keep the oil suction port lower than the oil level in the fuel tank. The positive pressure at the suction port should be ≤0.03MPa.
    5. Keep the oil clean, and the pipes and fuel tank must be thoroughly cleaned. Install a filter with sufficient capacity at a position above 50mm from the pump suction inlet to the bottom of the tank. The recommended accuracy is 100μm. A fine filter should be installed in the system, it is recommended to be 25μm and the oil cleanliness level should be within NAS12.
    6. The operating temperature of the oil should be controlled within the range of 15~55°C. When starting in severe cold and low temperatures, the oil should be heated, and the oil pump should be inched several times without load before running continuously without load.
    7. Pay attention to the viscosity and quality of the oil. It is recommended to use 32 anti-wear hydraulic oil when the ambient temperature is low.
    8. If you need to change the direction of the oil port, first remove the relevant pump body screws, be careful not to separate the left and right pump bodies, ensure that the heart piece rotates at a certain angle with the oil inlet, and then gradually tighten diagonally.
    9. After the entire pump is installed, rotate the pump shaft by hand. It should be even and flexible.
