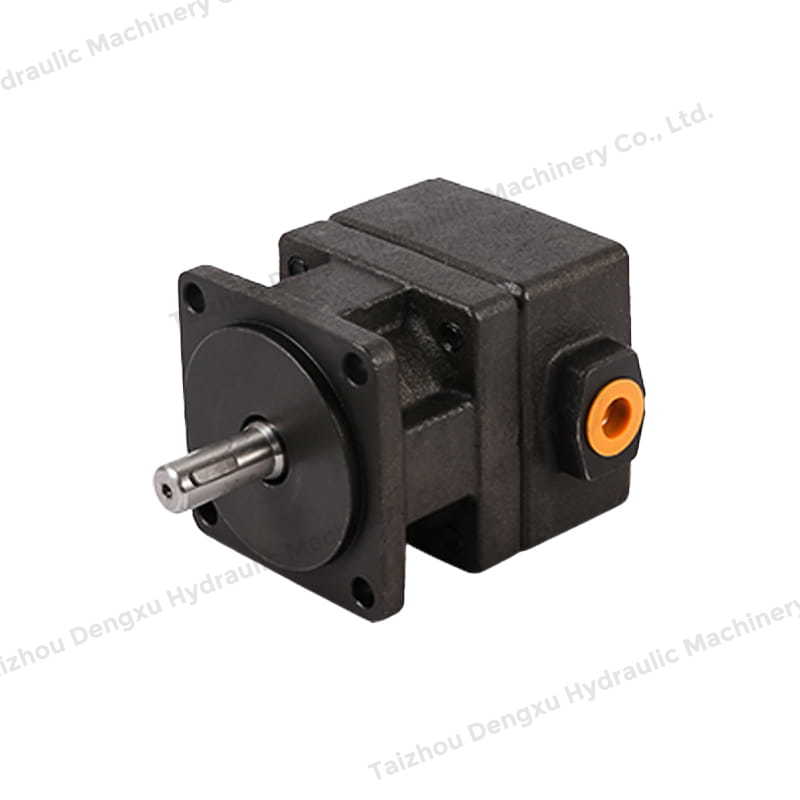

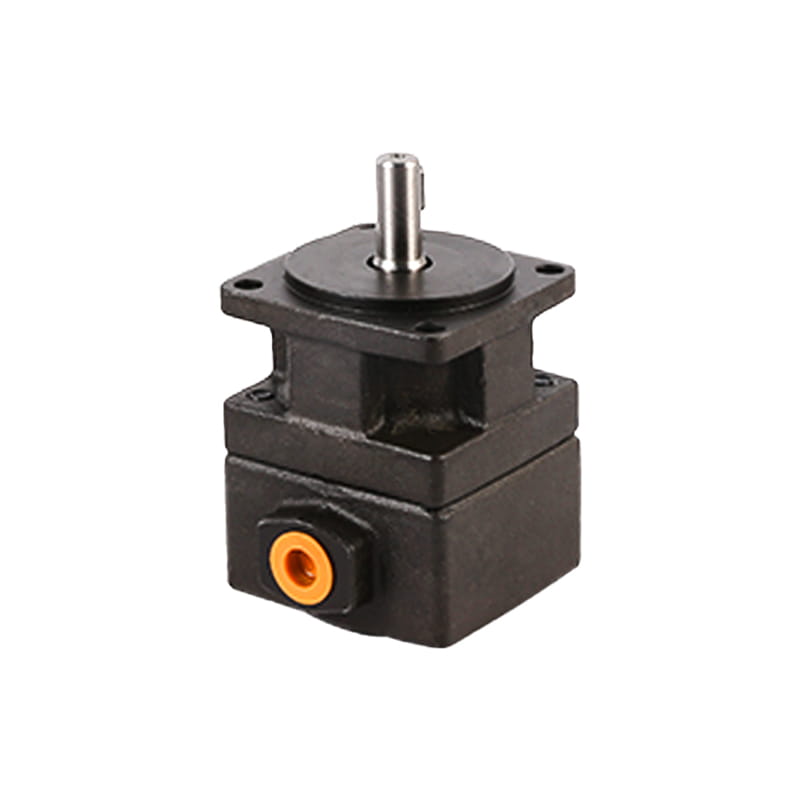

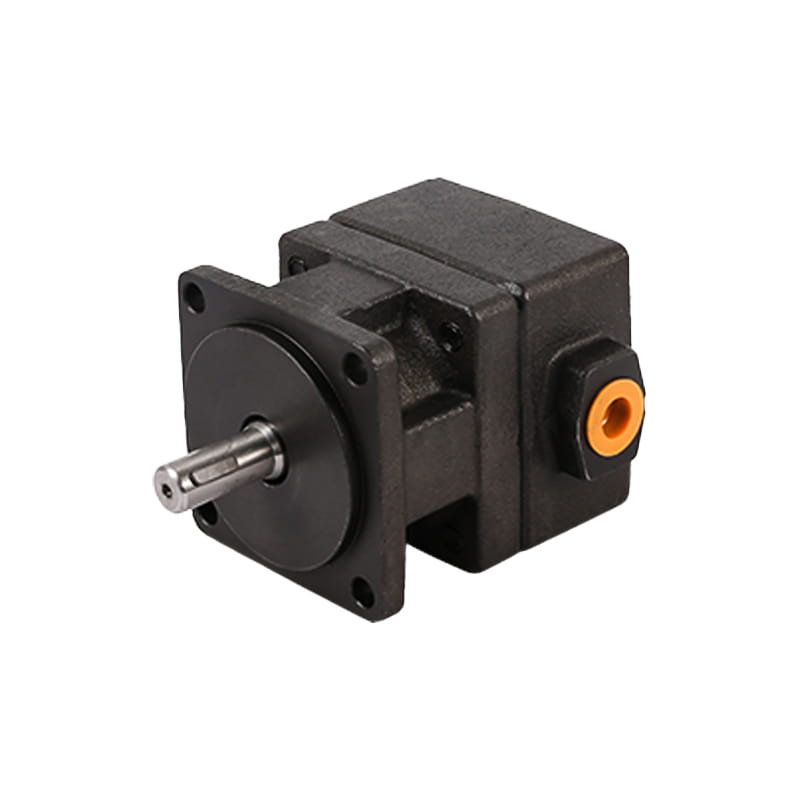

YB1 Series Lightweight Hydraulic Vane Pump With Medium And Low Pressure
YB1 Series Lightweight Hydraulic Vane Pump With Medium And Low Pressure
YB1 Series Lightweight Hydraulic Vane Pump With Medium And Low Pressure
YB1 Series Lightweight Hydraulic Vane Pump With Medium And Low Pressure

YB1 Series Lightweight Hydraulic Vane Pump With Medium And Low Pressure

The YB1 series hydraulic vane pump is a lightweight, compact, and high-performance product. Its unique design makes it an ideal choice for medium and low-pressure hydraulic systems.
Lightweight and compact design: The overall weight of the YB1 hydraulic vane pump is only 5.3 kg. Its lightweight and compact design makes it more convenient to install and maintain. This provides convenience for some application scenarios that require low device weight, such as mobile devices and small machinery.
Multiple displacement options: YB1 series hydraulic vane pumps provide multiple displacement options of 2.5-10mL/r to adapt to the needs of different hydraulic systems. This diverse displacement selection enables the YB1 pump to flexibly meet various medium and low-pressure applications, such as light construction machinery, agricultural machinery, etc.
Medium and low-pressure performance: The YB1 hydraulic vane pump is specially designed for medium and low-pressure hydraulic systems, and its performance is stable and reliable. This makes it an ideal choice in scenarios that require medium and low-pressure output from the hydraulic system, such as small lifting machinery and hydraulic access control systems.
Wide application fields: Due to its lightweight, medium, and low-pressure performance and various displacement options, YB1 series hydraulic vane pumps are widely used in many fields. For example, it can be used in the hydraulic system of light excavators to provide strong hydraulic support. It is also suitable for agricultural fields, such as the hydraulic drive system of small tractors.
High efficiency: The YB1 pump is known for its high-efficiency performance. It adopts the working principle of a vane pump to provide stable flow output. This helps improve the efficiency of the entire hydraulic system and reduces energy consumption.
Simple maintenance: The design of the YB1 series hydraulic vane pump focuses on user-friendliness, and the simple maintenance process makes it easier for users to perform maintenance and repairs. This is critical to reducing maintenance costs and extending equipment life.
Stable operation: The YB1 hydraulic vane pump adopts high-quality materials and precision manufacturing technology, which has stability and can maintain efficient and stable performance even in long-term operation. This reliability ensures the normal operation of the equipment under various working conditions.
YB1 2.5-10mL/r 5.3kg medium and low-pressure hydraulic vane pumps have many advantages such as lightweight and compactness, medium and low pressure performance, and multiple displacement options. It provides efficient and reliable hydraulic power for medium and low-pressure hydraulic systems and is widely used. In many fields, it provides powerful hydraulic support for various types of mechanical equipment.
Get A Quote
PREV：YB2 Series Compact Hydraulic Vane Pump With Medium And Low PressureNEXT：No next article
  • Technical Parameters

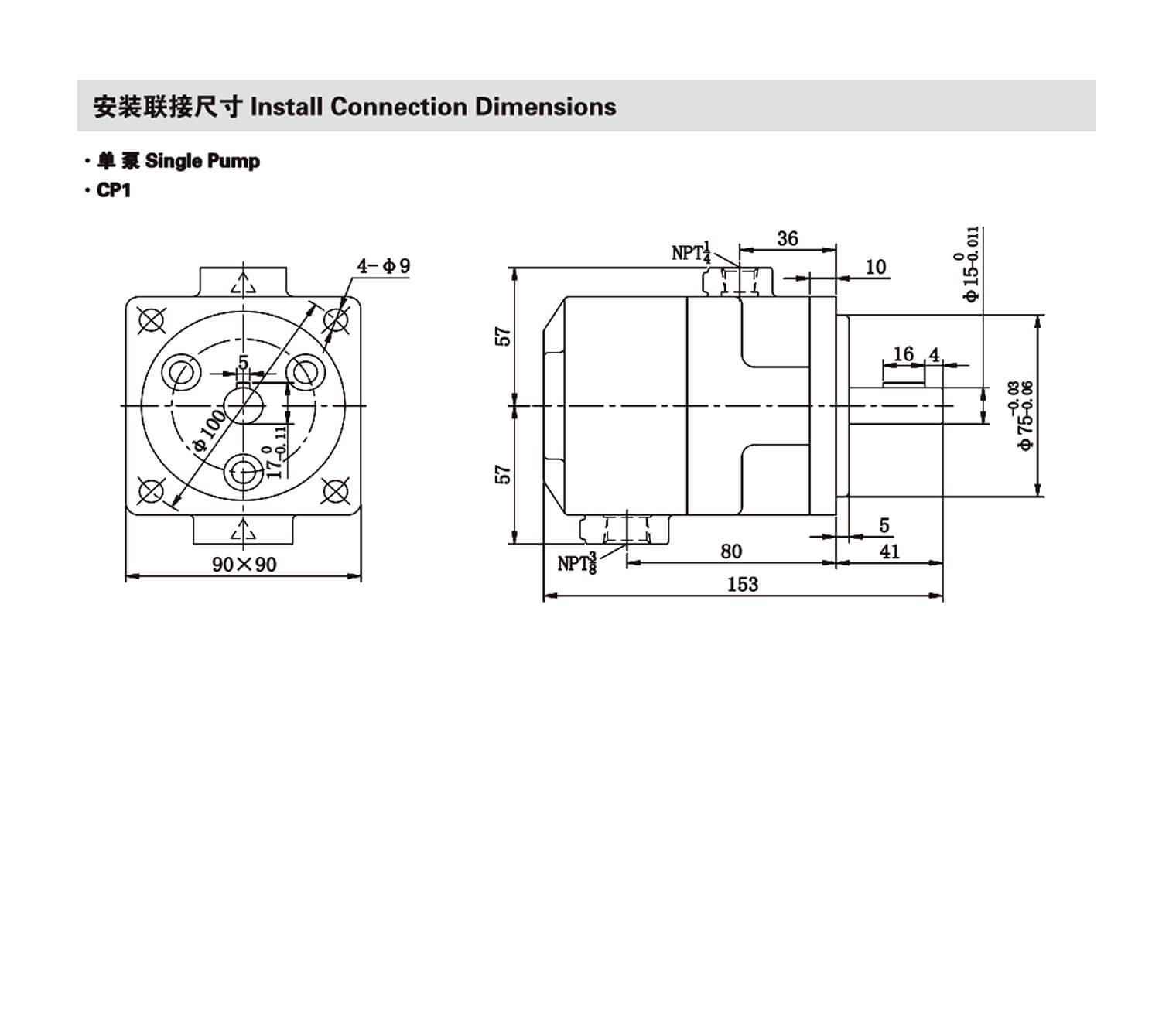

  • Dimensional Drawing
  • Model Description
  • Precautions
  • Contact Us
    • Single Pump
     Subsidiary series Model  Displacement
    mL/r    		 Rated pressure
    MPa    		 Speed
    r/min    		 Input power
    kW
         		 Weight
    kg
    CP1 YB1-2.5 2.5 6.3 1450 0.6 5.3
    YB1-4 4 0.9
    YB1-6.3 6.3 1.4
    YB1-10 10 2.2
  • Install and use
    1. During installation, the coaxiality error between the pump shaft and the drive motor shaft should be ≤0.10mm and a flexible coupling should be used. The support structure should be firm, rigid, and able to fully absorb vibration. The pump shaft should be installed horizontally.
    2. Match the pipelines according to the size of the oil port, especially the oil inlet pipe, and install a safety relief valve in the system; the oil inlet pipeline must be strictly sealed to prevent air leakage, and the oil return pipe opening should be lower than the liquid level.
    3. Before starting the pump, check whether the inlet and outlet routes and the direction of rotation are correct. When the pump is newly installed or restarted after being stopped for a long time, the air should be released from the oil outlet. When starting, run at low pressure (1.5MPa).
    4. When the pump is installed higher than the oil level of the tank, the oil suction height is ≤500mm. It is best to keep the oil suction port lower than the oil level in the fuel tank. The positive pressure at the suction port should be ≤0.03MPa.
    5. Keep the oil clean, and the pipes and fuel tank must be thoroughly cleaned. Install a filter with sufficient capacity at a position above 50mm from the pump suction inlet to the bottom of the tank. The recommended accuracy is 100μm. A fine filter should be installed in the system, it is recommended to be 25μm and the oil cleanliness level should be within NAS12.
    6. The operating temperature of the oil should be controlled within the range of 15~55°C. When starting in severe cold and low temperatures, the oil should be heated, and the oil pump should be inched several times without load before running continuously without load.
    7. Pay attention to the viscosity and quality of the oil. It is recommended to use 32 anti-wear hydraulic oil when the ambient temperature is low.
    8. If you need to change the direction of the oil port, first remove the relevant pump body screws, be careful not to separate the left and right pump bodies, ensure that the heart piece rotates at a certain angle with the oil inlet, and then gradually tighten diagonally.
    9. After the entire pump is installed, rotate the pump shaft by hand. It should be even and flexible.
