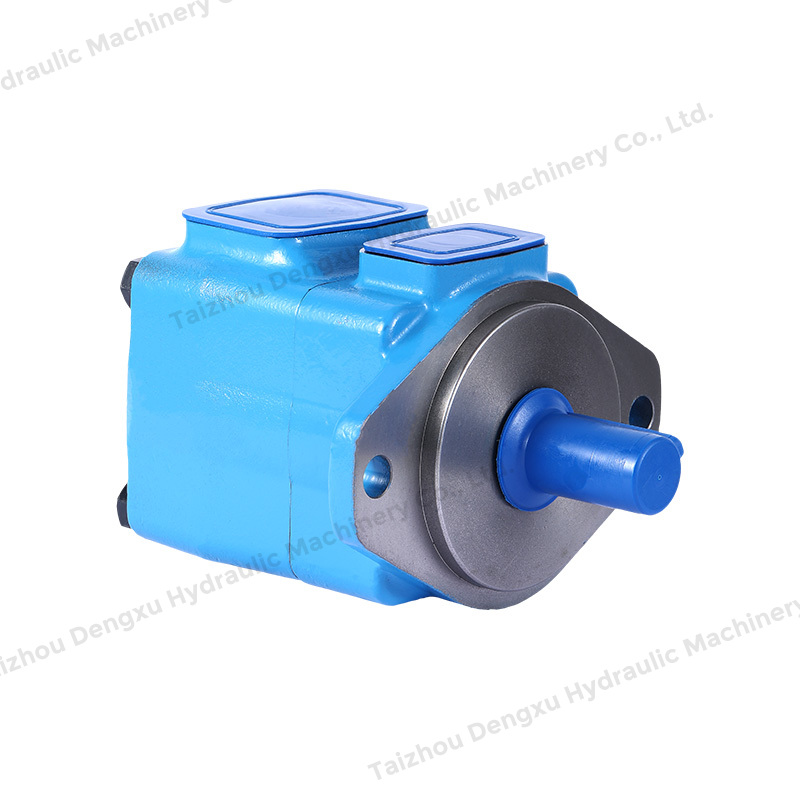

V Series 35V Hydraulic Vane Pump With Low Noise And High Pressure
V Series 35V Hydraulic Vane Pump With Low Noise And High Pressure
V Series 35V Hydraulic Vane Pump With Low Noise And High Pressure
V Series 35V Hydraulic Vane Pump With Low Noise And High Pressure

V Series 35V Hydraulic Vane Pump With Low Noise And High Pressure

The V-Series hydraulic vane pump is a superior hydraulic power solution that stands out for its wide displacement range, lightweight design, low-noise operation, and high-pressure performance.
The V-Series hydraulic vane pumps offer multiple displacement options from 53.3 to 142 ml per revolution, making them suitable for a variety of industrial applications. Users can choose the appropriate displacement according to specific needs to achieve flexible flow control, which is suitable for the requirements of different hydraulic systems.
The overall product weight is only 22.7 kg, which has an lightweight design compared to similar hydraulic vane pumps. This makes the V series hydraulic vane pump more convenient during installation and maintenance, while also helping to reduce the overall load of the equipment and improve the efficiency of the system.
The 35V model represents a specification of the V-Series hydraulic vane pumps, featuring high-pressure performance and reliable operation. This model is suitable for hydraulic systems with higher high-pressure requirements, such as hydraulic presses, metal forming equipment, etc., providing users with hydraulic output.
V series hydraulic vane pumps are popular for their low-noise operation. Advanced design and manufacturing processes reduce the vibration and noise of the pump, making it suitable for scenarios that require noise in the working environment, such as equipment near office areas.
V series hydraulic vane pumps excel in high pressure and are suitable for a variety of industrial applications requiring strong hydraulic force. Its reliable high-pressure performance makes the pump perform well in some demanding hydraulic systems, ensuring system stability and reliability.
Our V series 53.3-142mL/r 22.7kg 35V low-noise high-pressure hydraulic vane pump has become an ideal choice in hydraulic systems with its wide displacement range, lightweight design, low-noise operation, high-pressure performance, and a series of outstanding features. choose. Not only can it adapt to diverse industrial needs, but while providing efficient and reliable hydraulic power, it also focuses on user experience and provides performance and reliable technical support for the industrial field.
Get A Quote
PREV：Vickers V Series 45V Hydraulic Pump Vane Pump With Low Noise And High PressureNEXT：V Series 25V Oil Hydraulic Vane Pump With Low Noise And High Pressure
  • Technical Parameters

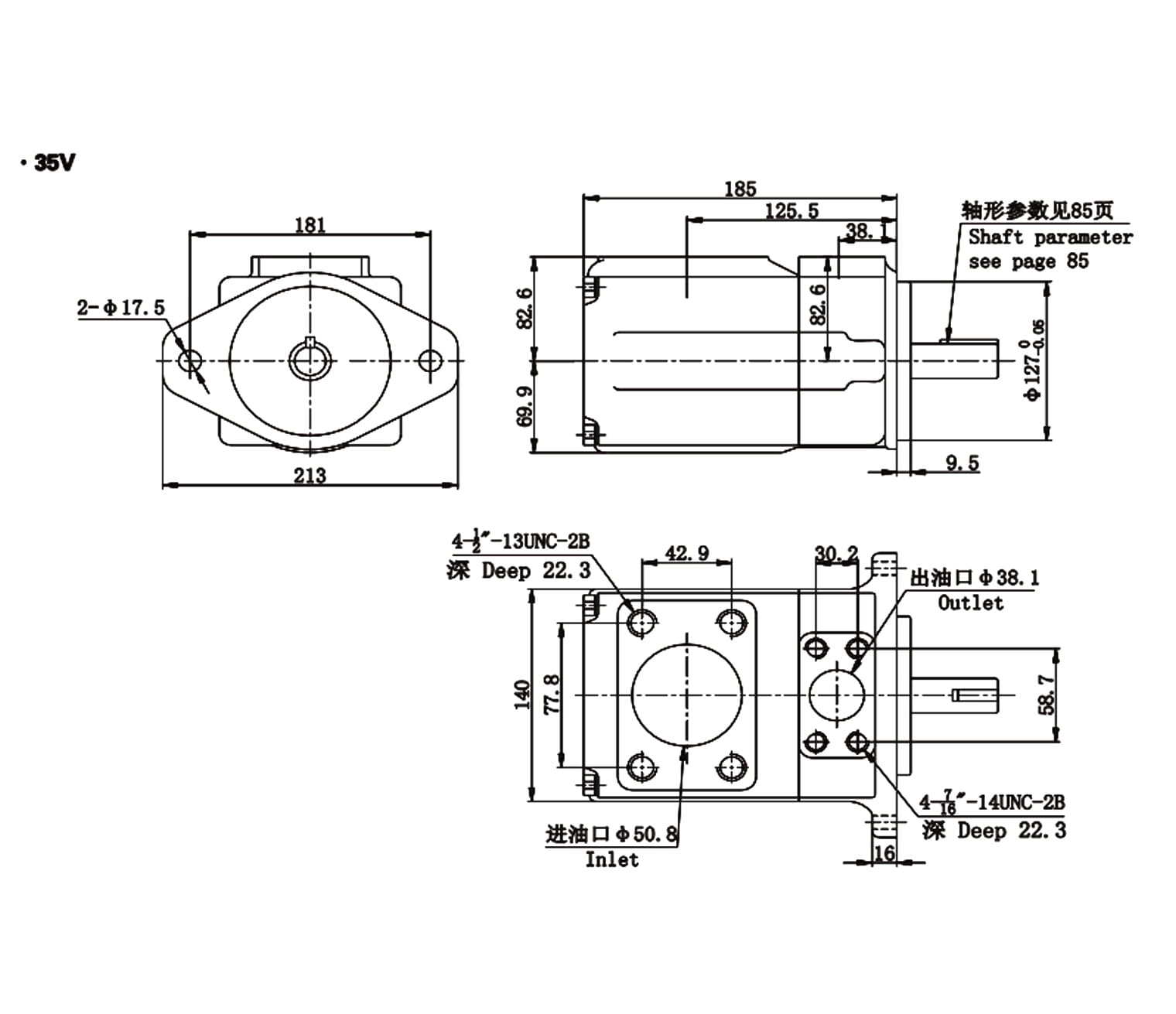

  • Dimensional Drawing

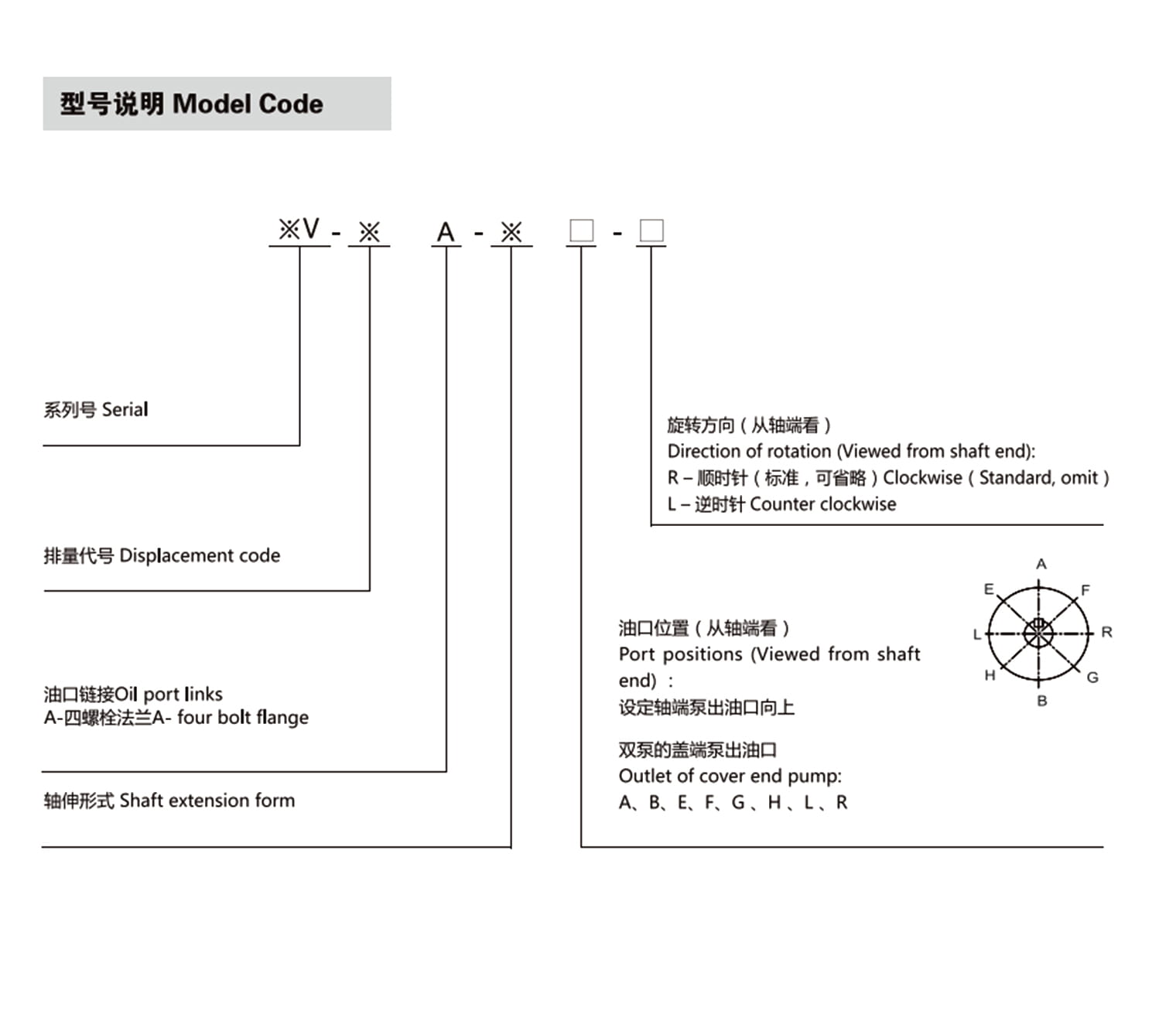

  • Model Description
  • Precautions
  • Contact Us
    • Single Pump
    Subsidiary Series Displacement Code Geometric Displacement
    mL/r    		 Using antiwear oil or Phosphate ester fluid Min.speed
    r/min    		 Weight
    kg
    Max.pressure
    MPa    		 Max.speed
    r/min
    35VQ 17 53.3 17.5 1800 600 22.7
    21 67
    25 81
    30 97
    32 100
    35 112
    38 121
    45 142 14
  • Install and use
    1. During installation, the coaxiality error between the pump shaft and the drive motor shaft should be ≤0.10mm and a flexible coupling should be used. The support structure should be firm, rigid, and able to fully absorb vibration. The pump shaft should be installed horizontally.
    2. When the working speed is lower than 1200r/min, it is recommended to put the suction port of the pump upward during installation so that it is easy to absorb oil when starting.
    3. Match the pipelines according to the size of the oil port, especially the oil inlet pipe, and install a safety relief valve in the system; the oil inlet pipeline must be strictly sealed to prevent air leakage, and the oil return pipe opening should be lower than the liquid level.
    4. Before starting the pump, check whether the inlet and outlet routes and the direction of rotation are correct. When the pump is newly installed or restarted after being stopped for a long time, the air should be released from the oil outlet. When starting, run at low pressure (1.5MPa).
    5. When the pump is installed higher than the oil level of the tank, the oil suction height is ≤500mm. It is best to keep the oil suction port lower than the oil level in the fuel tank. The positive pressure at the suction port should be ≤0.03MPa.
    6. Keep the oil clean, and the pipes and fuel tank must be thoroughly cleaned. Install a filter with sufficient capacity at a position above 50mm from the pump suction inlet to the bottom of the tank. The recommended accuracy is 100μm. A fine filter should be installed in the system, it is recommended to be 25μm and the oil cleanliness level should be within NAS12.
    7. The operating temperature of the oil should be controlled within the range of 15~55°C. The oil should be heated when starting in severe cold and low temperatures. The oil pump should be inched several times without load before running continuously without load.
    8. Pay attention to the viscosity and quality of the oil. It is recommended to use 32 anti-wear hydraulic oil when the ambient temperature is low.
    9. If you need to change the direction of the oil port, first remove the relevant pump body screws, be careful not to separate the left and right pump bodies, ensure that the heart piece rotates at a certain angle with the oil inlet, and then gradually tighten diagonally.
    10. After the entire pump is installed, rotate the pump shaft by hand. It should be even and flexible.
