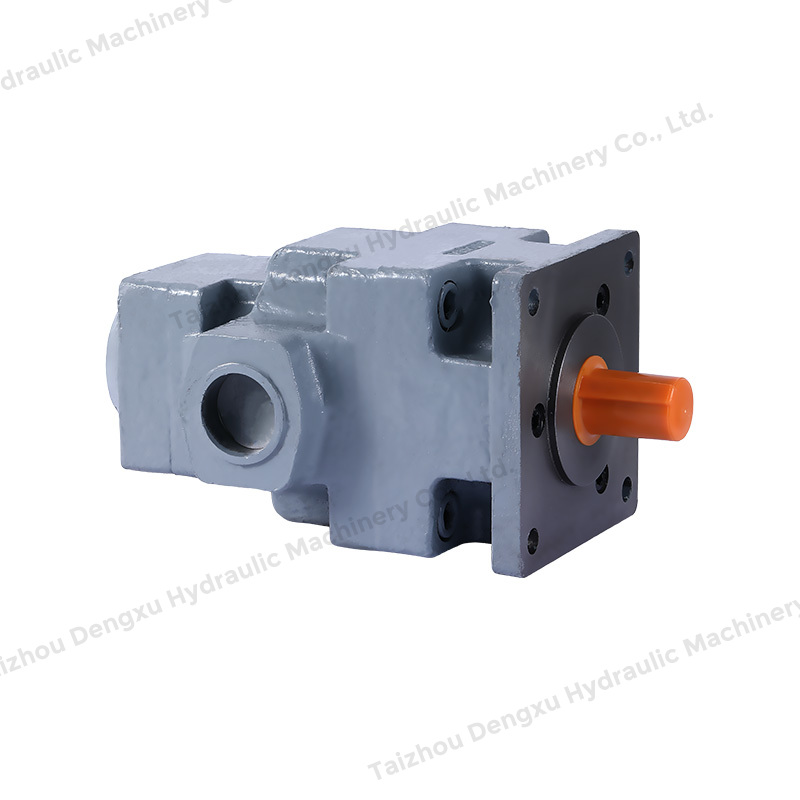

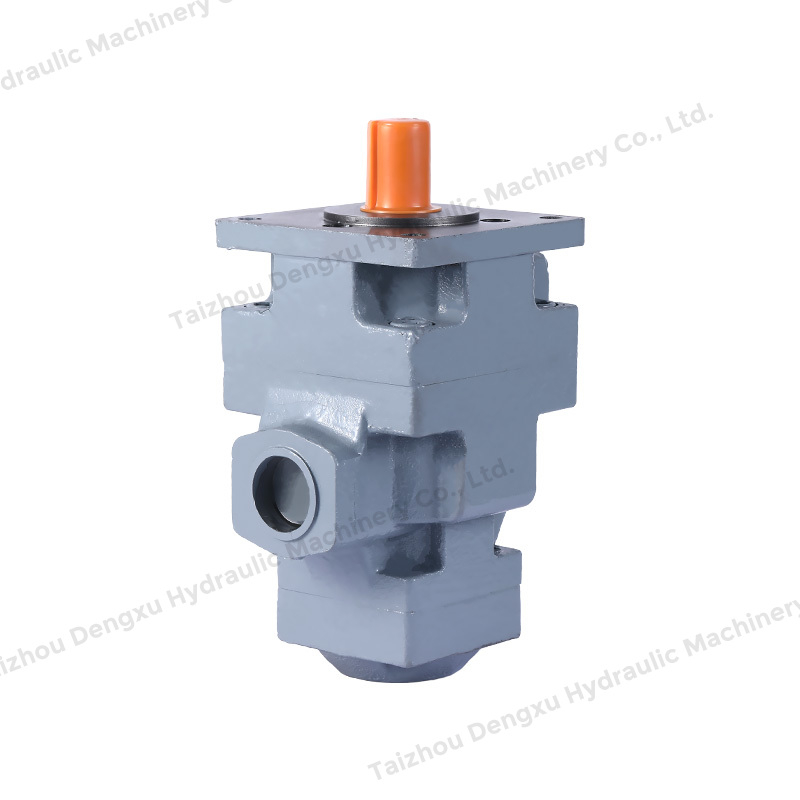

YB2-42 High Performance Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-42 High Performance Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-42 High Performance Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-42 High Performance Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-42 High Performance Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-42 High Performance Double Pump Hydraulic Vane Pump With Medium And Low Pressure

YB2-42 High Performance Double Pump Hydraulic Vane Pump With Medium And Low Pressure

YB2-42 medium and low-pressure double pump hydraulic vane pump is a multi-functional product with strong performance and wide application fields. Let’s describe this product in detail from multiple angles.
YB2-42 medium and low-pressure double pump hydraulic vane pump has liquid supply capacity. It adopts a dual design and can provide two independent liquid supply channels at the same time. This allows the pump to meet complex hydraulic system needs, such as hydraulic circuits requiring two different pressures or flows. This fluid supply capability not only provides greater flexibility but also improves system controllability and efficiency.
The pump provides reliable and efficient low to medium-pressure performance. It has been carefully developed and optimized to ensure performance in low and medium-pressure hydraulic systems. Whether in industrial manufacturing, logistics equipment, or agriculture, this pump can provide the required stable, reliable, and efficient medium and low-pressure hydraulic power.
YB2-42 medium and low-pressure double pump hydraulic vane pump also has a compact and lightweight design. It uses advanced materials and manufacturing processes to reduce the weight of the pump and save space. This compact design makes the pump ideal for installation in small equipment and tight spaces, providing greater flexibility and convenience.
The pump also uses advanced technology and materials to ensure reliability and durability. It can adapt to various harsh environmental conditions and working requirements and provides long life and reliable working performance. This enables the pump to withstand various tests and maintain stable performance over long periods of operation.
Our YB2-42 medium and low-pressure double pump hydraulic vane pump is a product with versatile functions and performance. Whether in industrial manufacturing, logistics equipment, or agricultural applications, this pump can provide stable, reliable, and efficient liquid supply capabilities to the hydraulic system, making the equipment run smoother and more efficiently.
Get A Quote
PREV：YB1 Single Vane PumpNEXT：YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
  • Technical Parameters

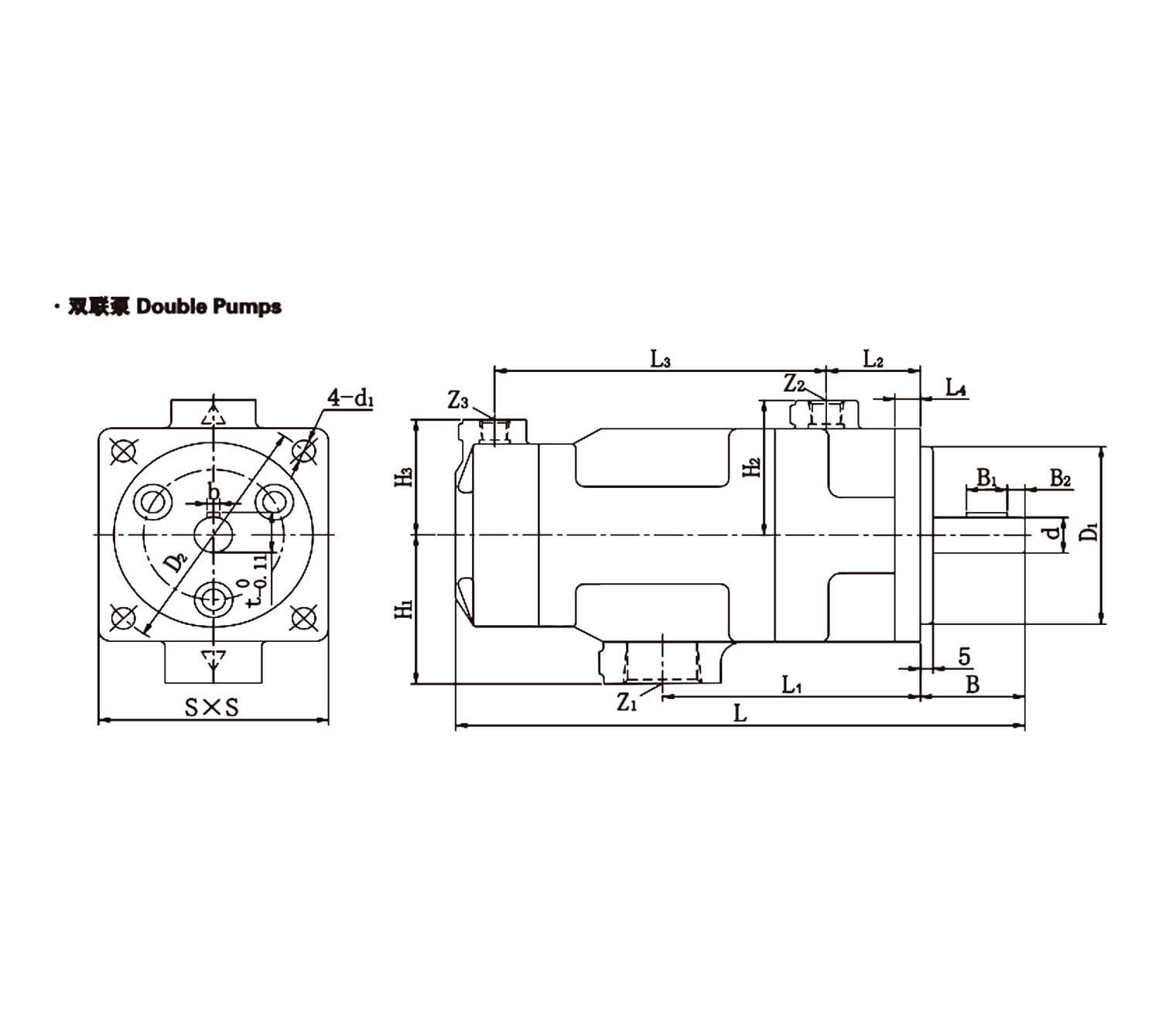

  • Dimensional Drawing
  • Model Description
  • Precautions
  • Contact Us

  • Subsidiary series L L1 L2 L3 B B1 S D1 D2 d d1 t b Z1 Z2 Z3
    DP21 259 114 38 146 50 20 110 ф90  -0.036 ф128 ф20  0 ф11 22 5 NPT 1 NPT¾ NPT¼
    -0.071 -0.013
    DP42 321 146 49 194 55 28 150 ф90  -0.036 ф175 ф30  0 ф14 33 8 NPT 1½ NPT 1 NPT¾
    -0.071 -0.013
  • Install and use
    1. During installation, the coaxiality error between the pump shaft and the drive motor shaft should be ≤0.10mm and a flexible coupling should be used. The support structure should be firm, rigid, and able to fully absorb vibration. The pump shaft should be installed horizontally.
    2. Match the pipelines according to the size of the oil port, especially the oil inlet pipe, and install a safety relief valve in the system; the oil inlet pipeline must be strictly sealed to prevent air leakage, and the oil return pipe opening should be lower than the liquid level.
    3. Before starting the pump, check whether the inlet and outlet routes and the direction of rotation are correct. When the pump is newly installed or restarted after being stopped for a long time, the air should be released from the oil outlet. When starting, run at low pressure (1.5MPa).
    4. When the pump is installed higher than the oil level of the tank, the oil suction height is ≤500mm. It is best to keep the oil suction port lower than the oil level in the fuel tank. The positive pressure at the suction port should be ≤0.03MPa.
    5. Keep the oil clean, and the pipes and fuel tank must be thoroughly cleaned. Install a filter with sufficient capacity at a position above 50mm from the pump suction inlet to the bottom of the tank. The recommended accuracy is 100μm. A fine filter should be installed in the system, it is recommended to be 25μm and the oil cleanliness level should be within NAS12.
    6. The operating temperature of the oil should be controlled within the range of 15~55°C. When starting in severe cold and low temperatures, the oil should be heated, and the oil pump should be inched several times without load before running continuously without load.
    7. Pay attention to the viscosity and quality of the oil. It is recommended to use 32 anti-wear hydraulic oil when the ambient temperature is low.
    8. If you need to change the direction of the oil port, first remove the relevant pump body screws, be careful not to separate the left and right pump bodies, ensure that the heart piece rotates at a certain angle with the oil inlet, and then gradually tighten diagonally.
    9. After the entire pump is installed, rotate the pump shaft by hand. It should be even and flexible.
