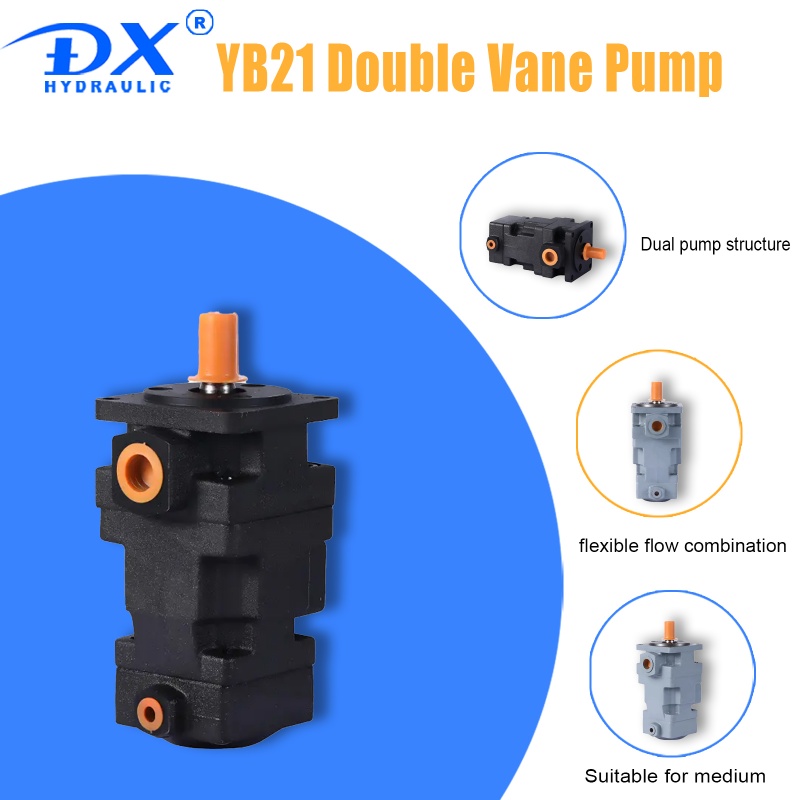

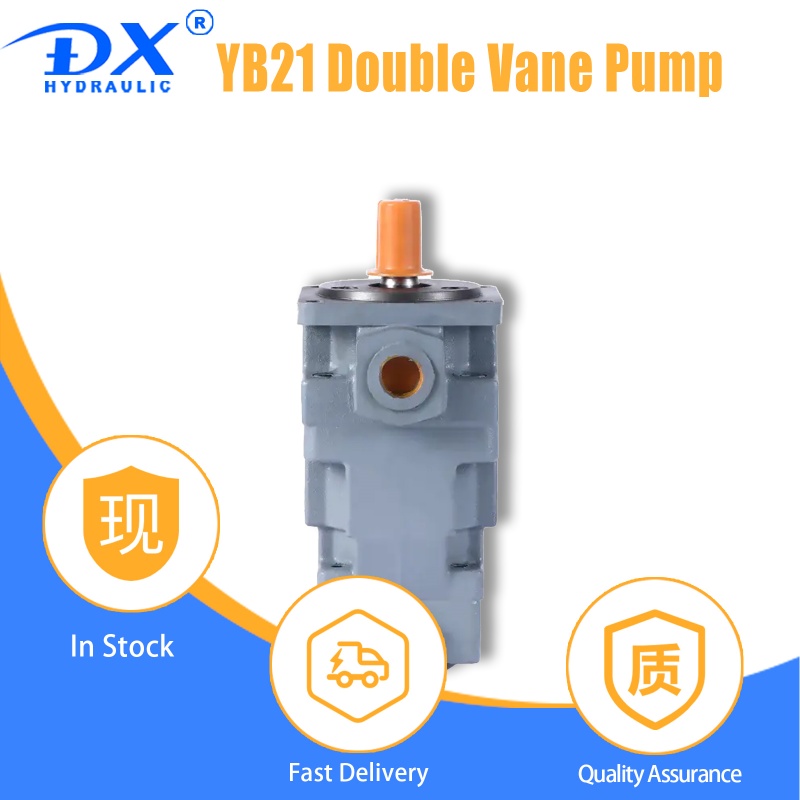

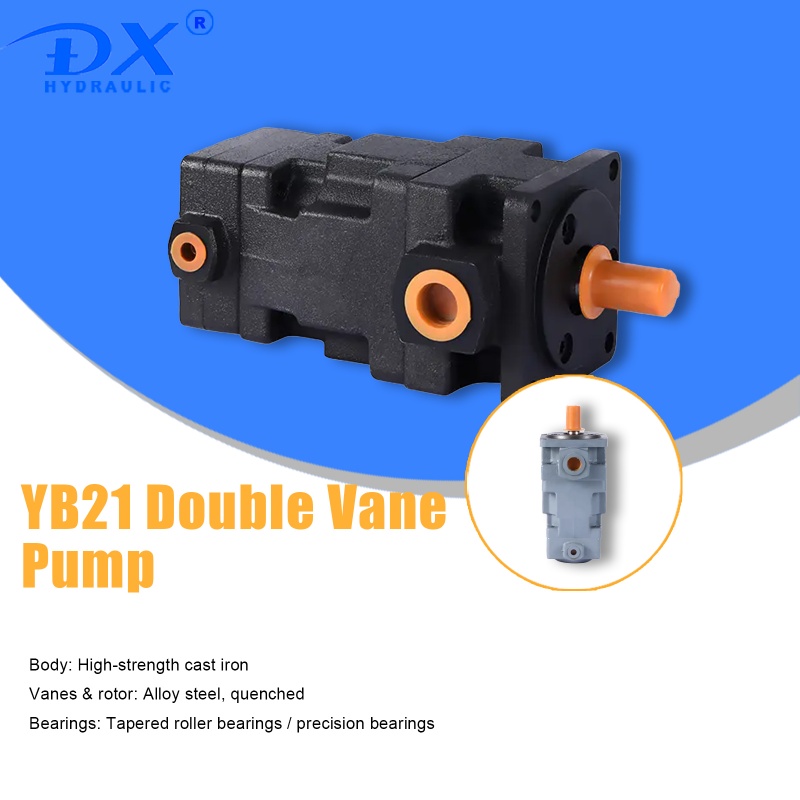

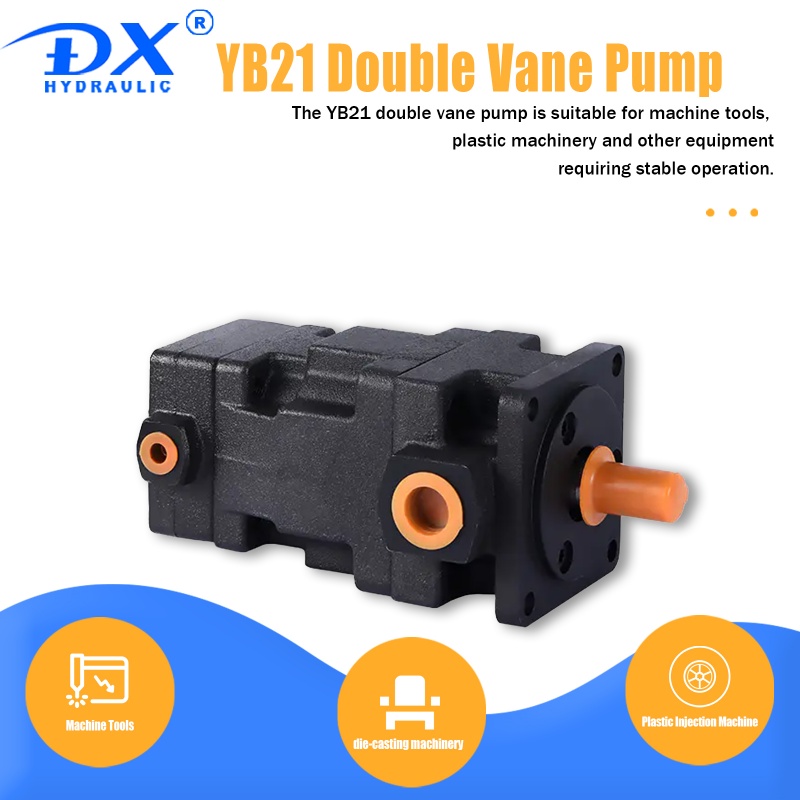

YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure
YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure

YB2-21 Stable Reliable Double Pump Hydraulic Vane Pump With Medium And Low Pressure

YB2-21 hydraulic vane pump is a medium and low-pressure double pump product that we are proud of. It is highly favored for its performance and wide range of application fields.
YB2-21 double pump is specially designed for medium and low-pressure hydraulic systems, and its performance is in this range, which makes it suitable for various industrial applications.
YB2-21 adopts a duplex design, combining the output of two pumps to provide greater flow. This means that it can be used in scenarios that require more hydraulic output, such as hydraulic clamps, lifting platforms, and other industrial equipment.
The YB2-21 hydraulic vane pump uses high-quality materials and advanced manufacturing processes to ensure that it remains stable and reliable during long-term operation. This provides users with constantly stable hydraulic support, reducing equipment maintenance frequency and downtime.
Due to its low-pressure performance and duplex design, the YB2-21 hydraulic vane pump is widely used in many fields. It can be used in small agricultural machinery, loading and unloading equipment, mixer trucks, and other medium and low-pressure hydraulic systems to provide powerful power support for these equipment.
YB2-21 hydraulic vane pump adopts a high-efficiency design to improve the overall efficiency of the system. Its streamlined structure and optimized internal components help reduce fluid leakage and energy loss for more energy-efficient operation.
The YB2-21 hydraulic vane pump is designed to be simple and easy to install and maintain. For users, this not only reduces maintenance costs but also improves equipment availability and productivity.
The design of the YB2-21 double pump focuses on user experience, providing users with a more user-friendly experience by simplifying operation and improving maintainability. This makes it easier for operators to use and maintain the equipment.
Our YB2-21 medium and low-pressure double pump hydraulic vane pump is known for its powerful medium and low-pressure performance, double design, wide range of applications, high-efficiency, and energy-saving design, easy installation and maintenance, and user experience. Advantages, making it an ideal choice for medium and low-pressure hydraulic systems. Whether in agriculture, construction, or other industrial fields, the YB2-21 vane pump provides stable and efficient hydraulic support for equipment.
Get A Quote
PREV：YB2-42 High Performance Double Pump Hydraulic Vane Pump With Medium And Low PressureNEXT：YB4 Series Multipurpose Hydraulic Vane Pump With Medium And Low Pressure

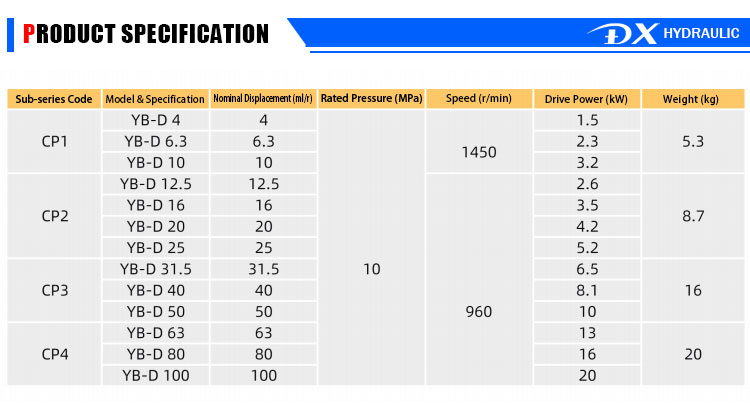

  • Technical Parameters
  • Dimensional Drawing
  • Model Description
  • Precautions
  • Contact Us
    • Double Pumps
     Subsidiary series Model  Subsidiary series Model
    CP21 YB1-12.5 ~ 25/2.5 ~ 10 CP41 YB1-63 ~ 125/2.5 ~ 10

  • Subsidiary series L L1 L2 L3 B B1 S D1 D2 d d1 t b Z1 Z2 Z3
    DP21 259 114 38 146 50 20 110 ф90  -0.036 ф128 ф20  0 ф11 22 5 NPT 1 NPT¾ NPT¼
    -0.071 -0.013
    DP42 321 146 49 194 55 28 150 ф90  -0.036 ф175 ф30  0 ф14 33 8 NPT 1½ NPT 1 NPT¾
    -0.071 -0.013
  • Install and use
    1. During installation, the coaxiality error between the pump shaft and the drive motor shaft should be ≤0.10mm and a flexible coupling should be used. The support structure should be firm, rigid, and able to fully absorb vibration. The pump shaft should be installed horizontally.
    2. Match the pipelines according to the size of the oil port, especially the oil inlet pipe, and install a safety relief valve in the system; the oil inlet pipeline must be strictly sealed to prevent air leakage, and the oil return pipe opening should be lower than the liquid level.
    3. Before starting the pump, check whether the inlet and outlet routes and the direction of rotation are correct. When the pump is newly installed or restarted after being stopped for a long time, the air should be released from the oil outlet. When starting, run at low pressure (1.5MPa).
    4. When the pump is installed higher than the oil level of the tank, the oil suction height is ≤500mm. It is best to keep the oil suction port lower than the oil level in the fuel tank. The positive pressure at the suction port should be ≤0.03MPa.
    5. Keep the oil clean, and the pipes and fuel tank must be thoroughly cleaned. Install a filter with sufficient capacity at a position above 50mm from the pump suction inlet to the bottom of the tank. The recommended accuracy is 100μm. A fine filter should be installed in the system, it is recommended to be 25μm and the oil cleanliness level should be within NAS12.
    6. The operating temperature of the oil should be controlled within the range of 15~55°C. When starting in severe cold and low temperatures, the oil should be heated, and the oil pump should be inched several times without load before running continuously without load.
    7. Pay attention to the viscosity and quality of the oil. It is recommended to use 32 anti-wear hydraulic oil when the ambient temperature is low.
    8. If you need to change the direction of the oil port, first remove the relevant pump body screws, be careful not to separate the left and right pump bodies, ensure that the heart piece rotates at a certain angle with the oil inlet, and then gradually tighten diagonally.
    9. After the entire pump is installed, rotate the pump shaft by hand. It should be even and flexible.
